Object Detection System And Pedestrian Protection System
›
Schematic and Wiring Diagrams
›
Object Detection Wiring Schematics
›
Comprehensive Safety Multifunction Switches (UGN/UVZ)
Comprehensive Safety Multifunction Switches (UGN/UVZ)

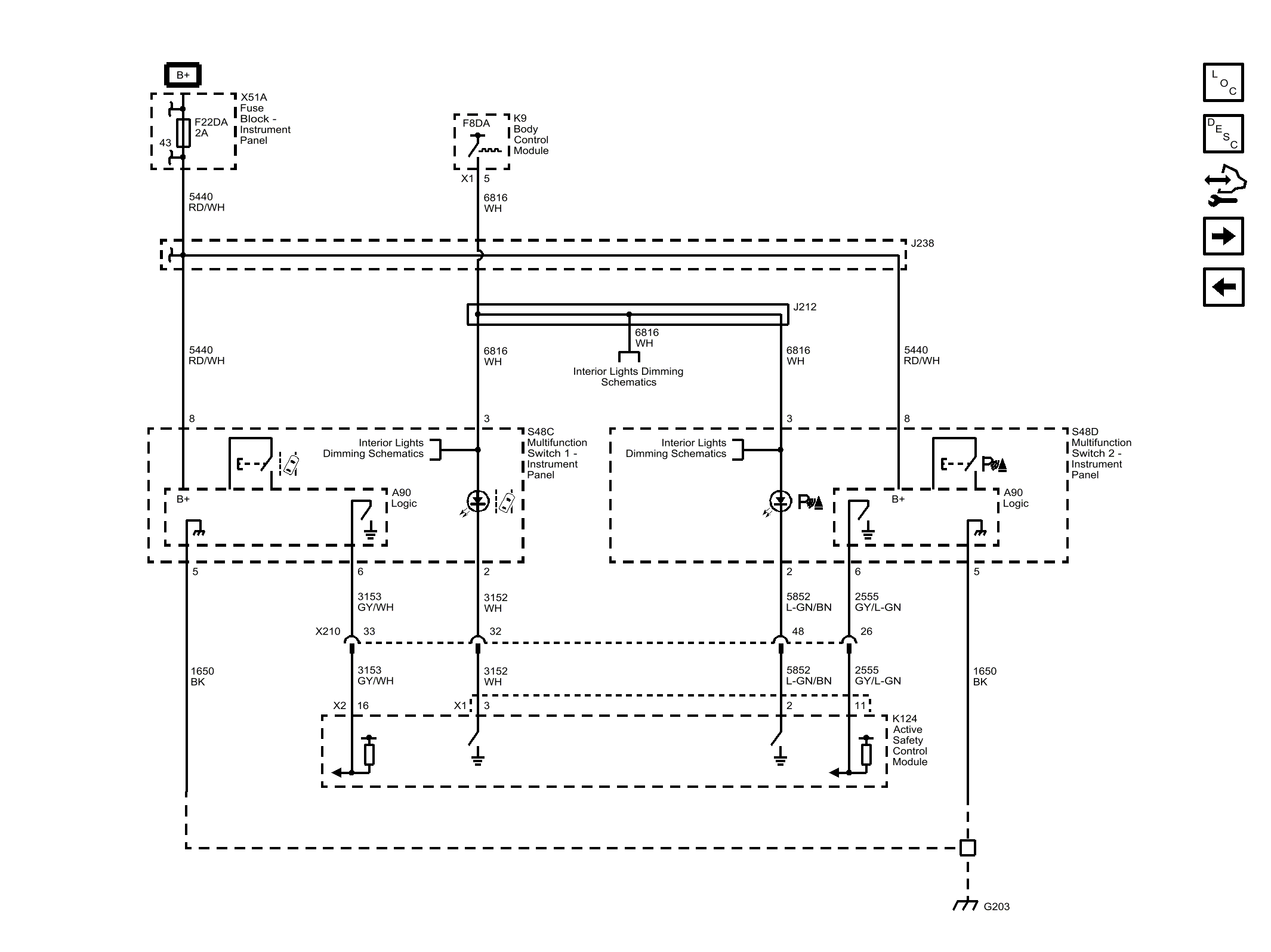

Fig 1: Comprehensive Safety Multifunction Switches (UGN/UVZ)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
