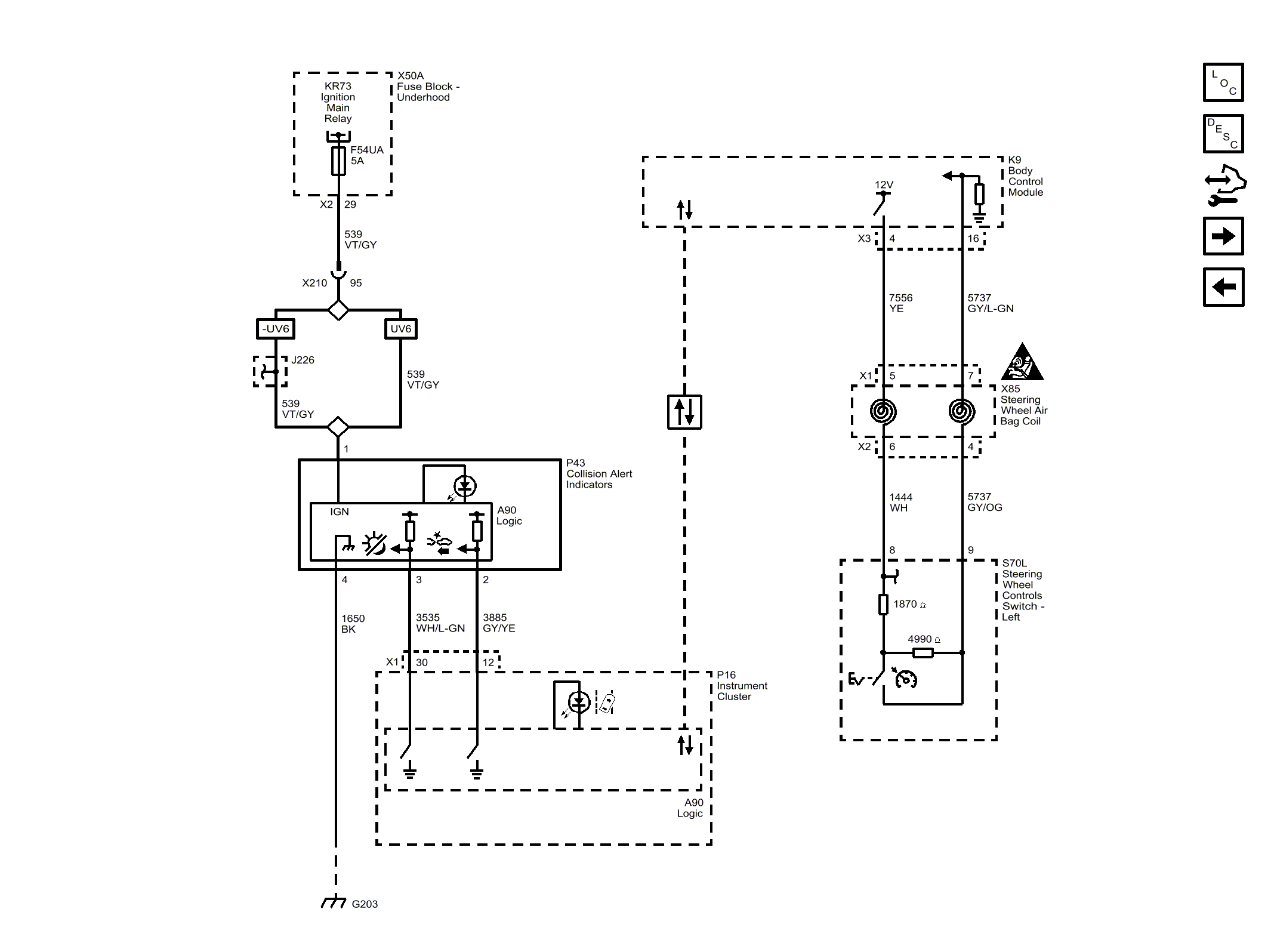

Home › Cadillac › 2017 › XTS Base › Repair and Diagnosis › Accessories & Equipment › Collision/Avoidance › Object Detection System And Pedestrian Protection System › Schematic and Wiring Diagrams › Object Detection Wiring Schematics › Forward Collision Alert (UEU)
