Comprehensive Safety Power, Ground and Serial Data (UGN/UVZ)

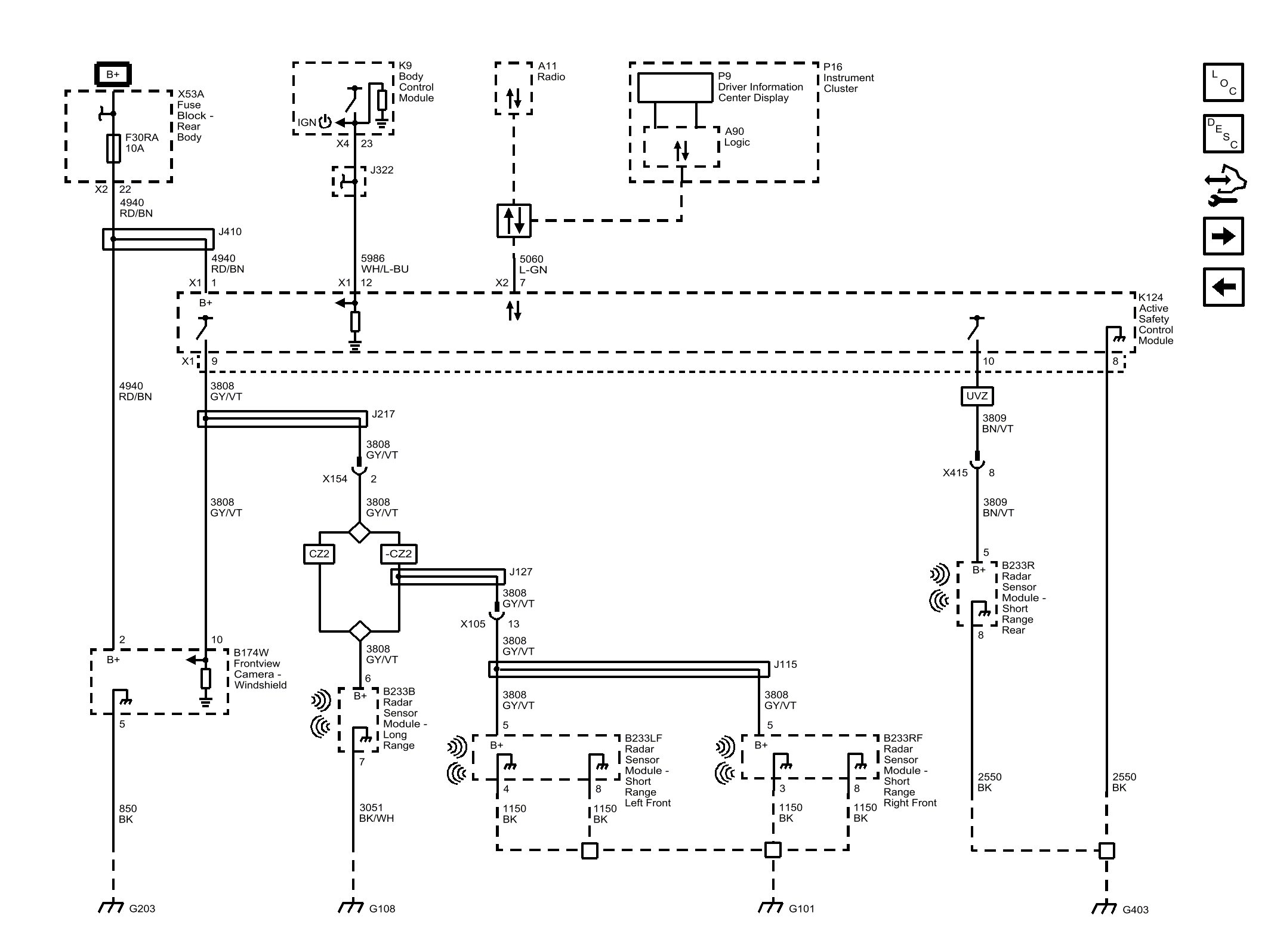

Fig 1: Comprehensive Safety Power, Ground and Serial Data (UGN/UVZ)
GM4454610Courtesy of GENERAL MOTORS COMPANY
