Outside Rearview Mirror Glass Replacement

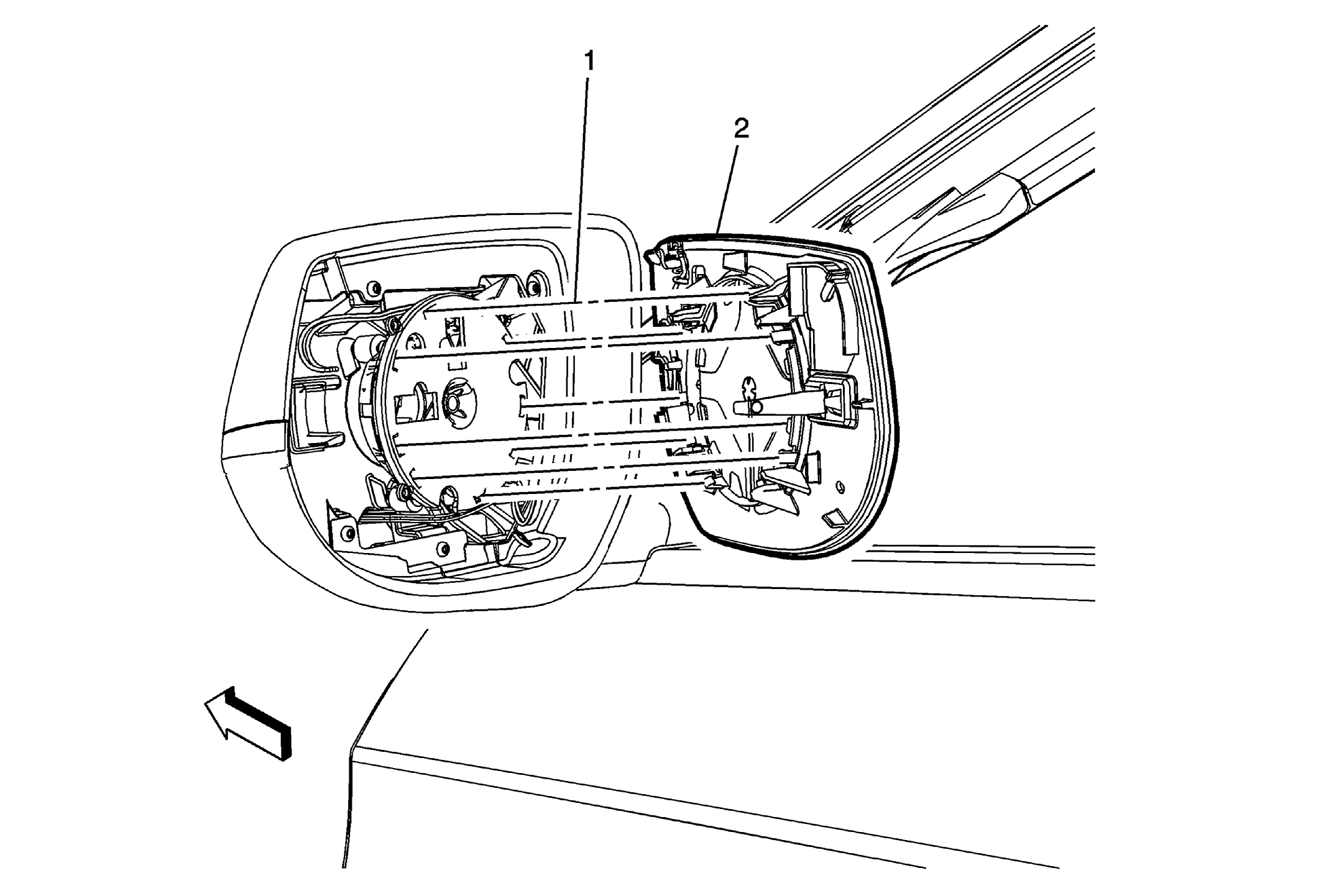

Fig 1: Outside Rearview Mirror Glass & Retainers
GM2750307Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Outside Rearview Mirror Glass Retainers (Qty: 9)
WARNING:

Approved safety glasses and gloves should be worn when performing this procedure to reduce the chance of personal injury.

Procedure

  1. Place masking tape over the mirror glass.
  2. Carefully push the outside rearview mirror glass upward and into the right corner of the mirror housing, allowing access to the bottom edge.
  3. Grasp the bottom edge of the mirror glass firmly, lift it up and pull rearward until the mirror glass retainers release the actuator motor ring.
  4. Disconnect the outside mirror glass electrical connectors.
2 Outside Rearview Mirror Glass

Procedure

  1. Place the mirror glass in the lower motor retainers.
  2. Place one hand on the back of the mirror housing, using the flat palm of the other hand press inward locking the mirror glass retainers into the actuator motor ring.
  3. Remove the masking tape from the mirror glass.
NOTE:

Inspect the outside mirror for proper operation.
