Driver or Passenger Seat Adjuster Memory Module Replacement

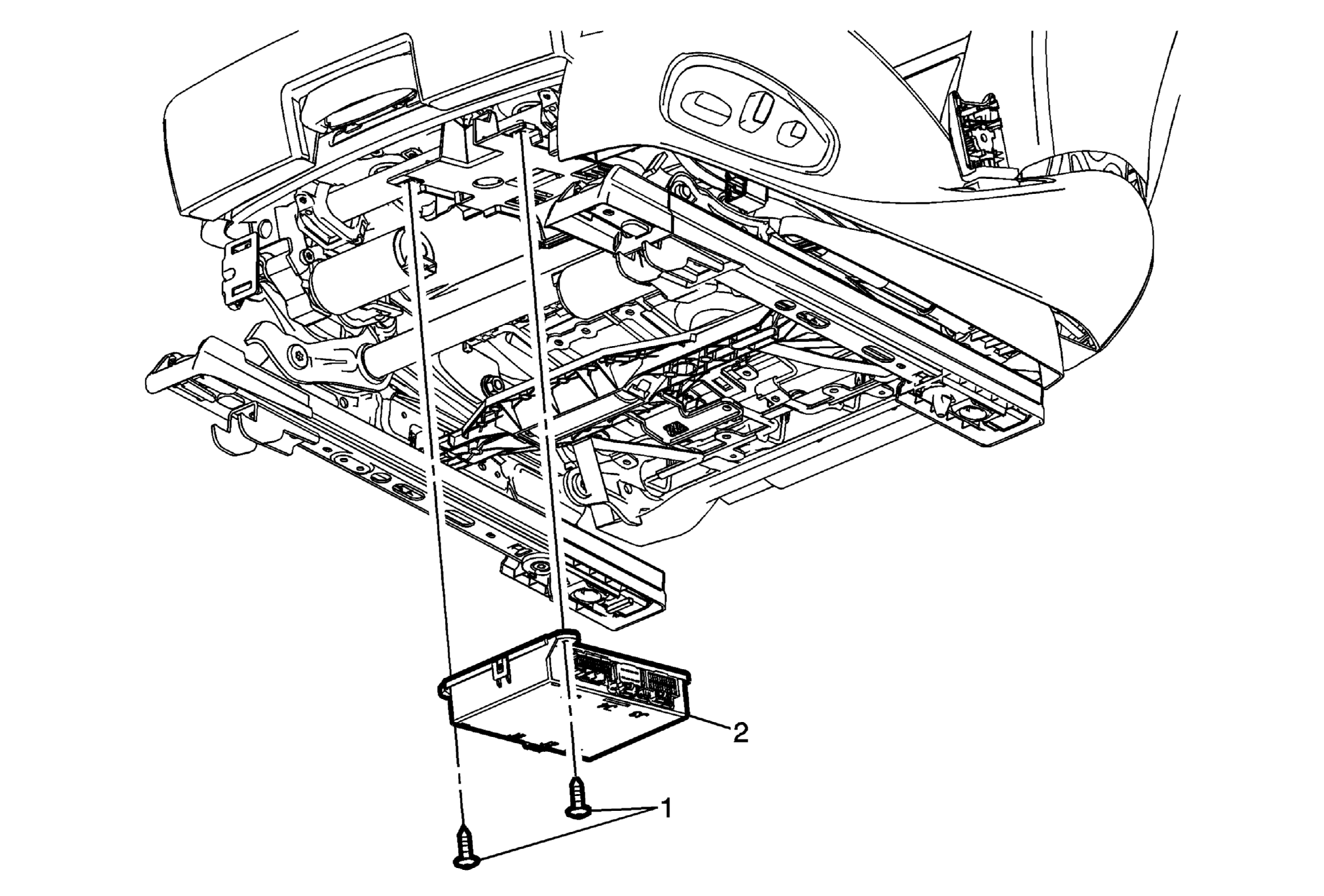

Fig 1: Driver or Passenger Seat Adjuster Memory Module
GM2756068Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the front seat. Refer to Driver or Passenger Seat Removal and Installation .
1 Driver or Passenger Seat Adjuster Memory Module Fastener (Qty: 2)
CAUTION:

Refer to Fastener Caution .
2 Driver or Passenger Seat Adjuster Memory Module

Procedure

  1. Disconnect the electrical connectors.
  2. Remove the module from the adjuster memory and wiring harness bracket.
  3. Refer to Control Module References for programing and setup information.
