Rear Seat Heater Control Module Replacement

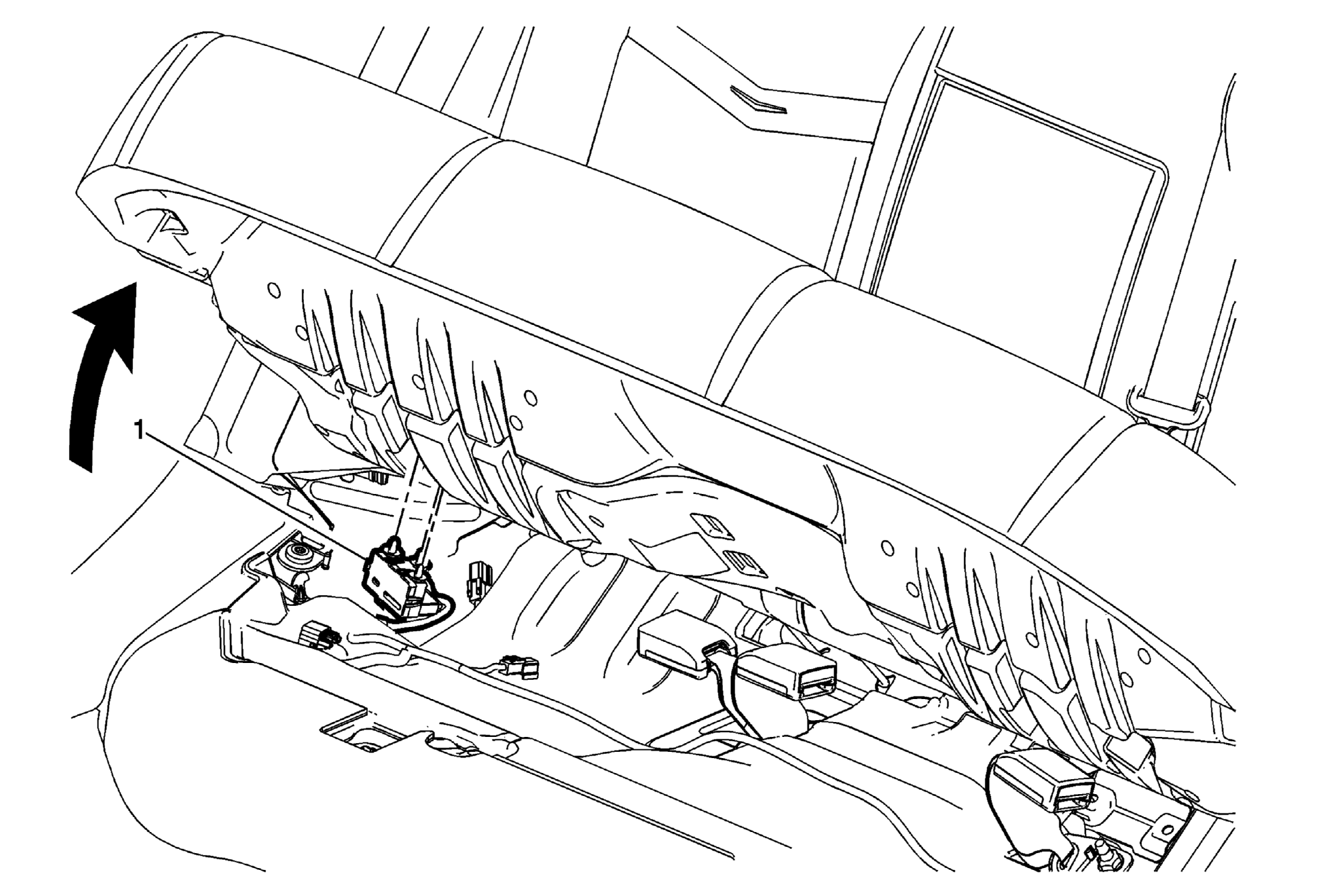

Fig 1: Rear Seat Heater Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the rear seat cushion. Refer to Rear Seat Cushion Removal and Installation .
1	Rear Seat Heater Control Module Procedure  Disconnect the electrical connector.
