2017
›
XTS Base
›
Repair and Diagnosis
›
Brakes
›
Traction Control
›
Antilock Brake System
›
Schematic Wiring Diagrams
›
Antilock Brake System Wiring Schematics
›
Module Power, Ground, Subsystem References and Brake Applied Signal
Module Power, Ground, Subsystem References and Brake Applied Signal

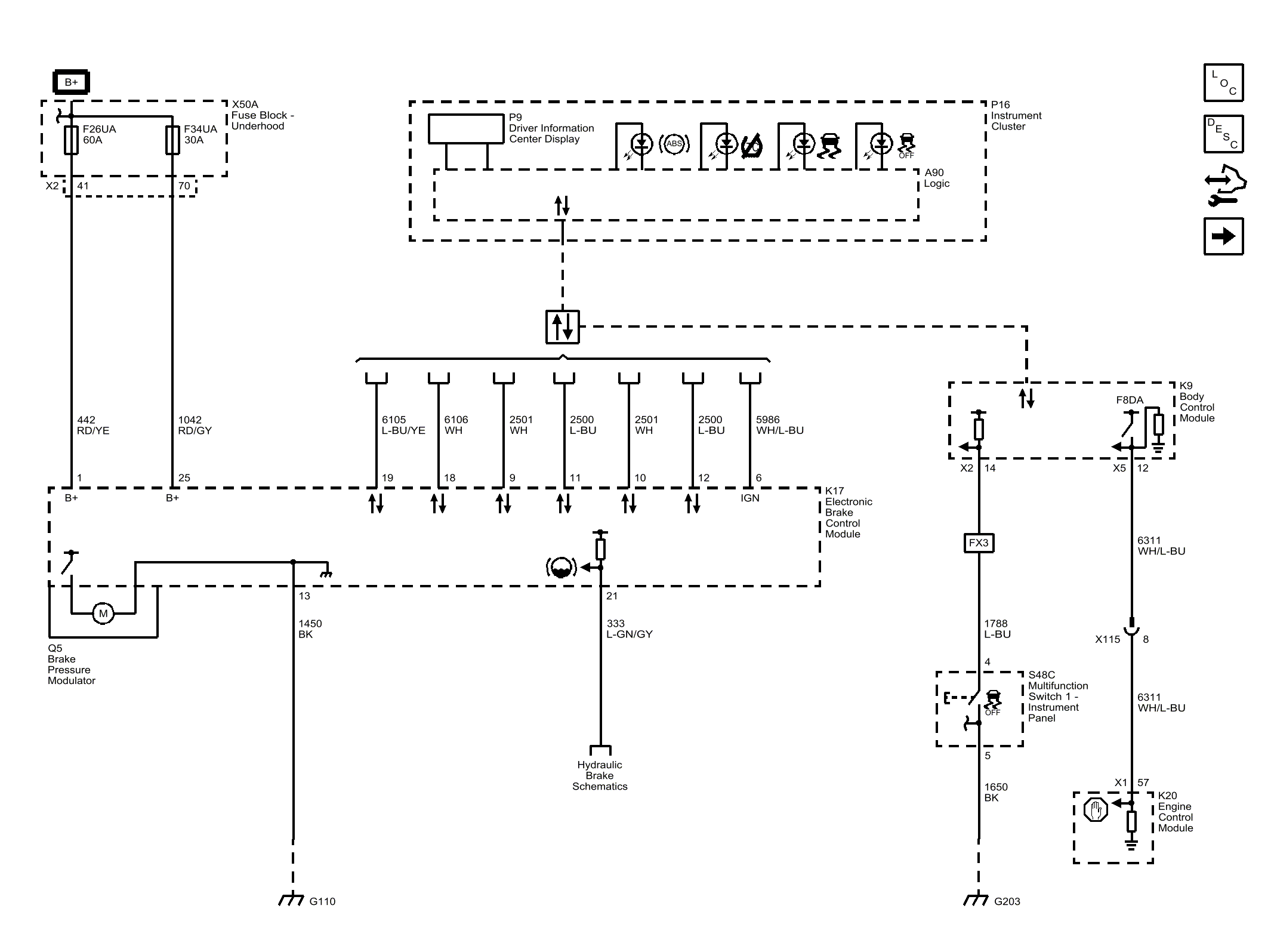

Fig 1: Module Power, Ground, Subsystem References and Brake Applied Signal
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
