Battery Negative Cable Disconnection and Connection

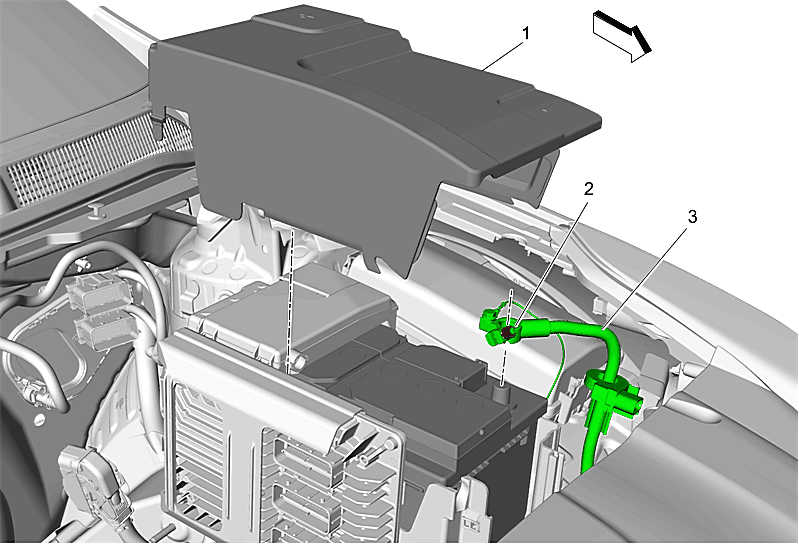

Fig 1: View Of Battery Negative Cable & Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Turn the ignition OFF and remove the ignition key. Record all of the radio station presets. Record the remaining engine oil life.
1	Battery Cover
2	Battery Negative Post Clamp Nut WARNING: Refer to Battery Disconnect Warning . CAUTION: Refer to Fastener Caution . Tighten 6 N.m (53 lb in)
3	Battery Negative Cable
