Installation Procedure

Install the battery positive and negative cable into the vehicle and place into position.

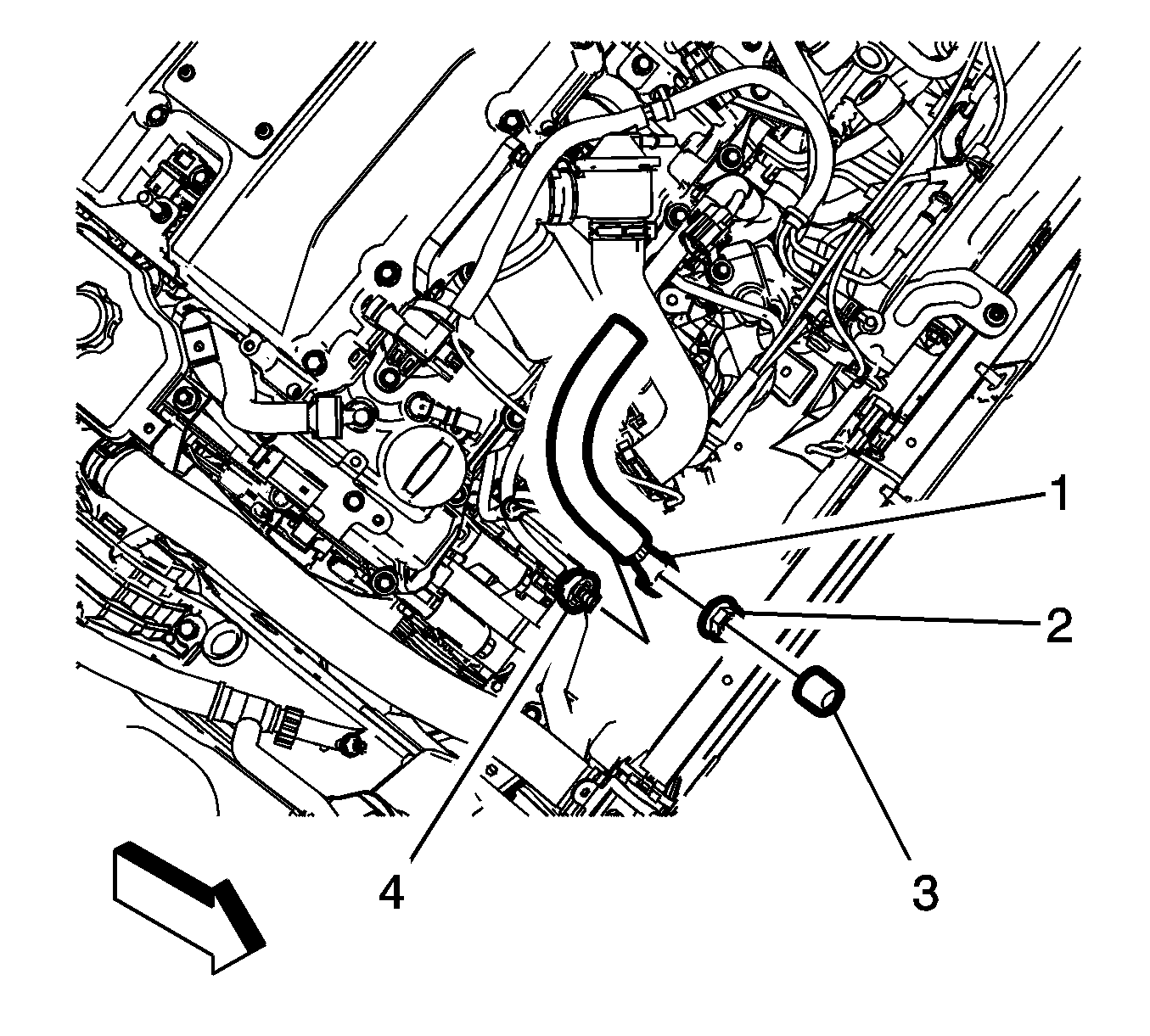

Fig 1: Battery Positive Cable Terminal

Courtesy of GENERAL MOTORS COMPANY

CAUTION:

Refer to Fastener Caution .

Install the battery positive cable terminal (1) to the B + generator stud (4) and tighten the fastener (2) to 15 N.m (11 lb ft)
Install the protective cap (3).

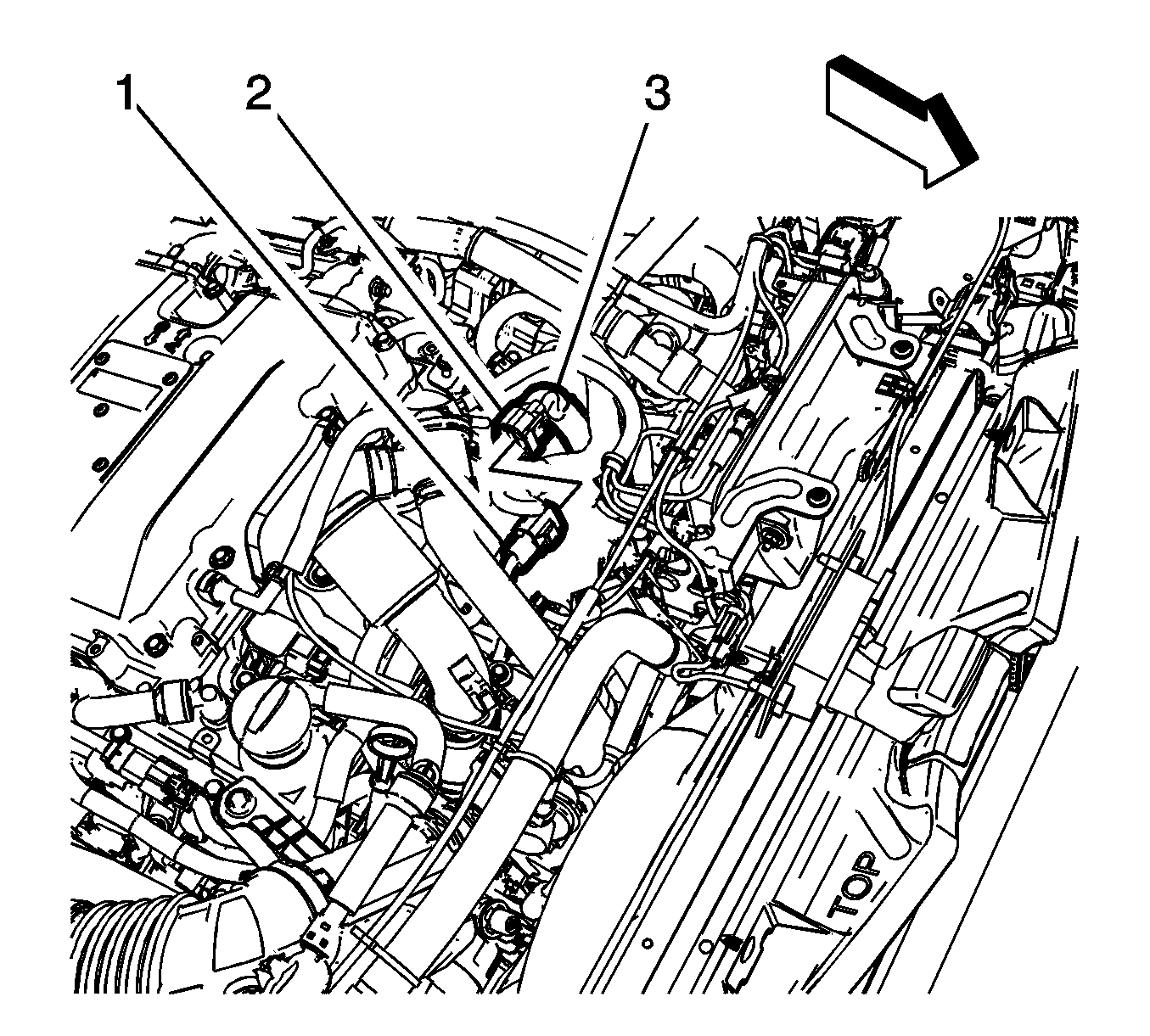

Fig 2: Battery Positive And Negative Cable Connectors

Courtesy of GENERAL MOTORS COMPANY

Connect the engine wiring harness connector (1) to the battery positive and negative cable connector (2).

Fig 3: Battery Positive Cable Connector

Courtesy of GENERAL MOTORS COMPANY

Connect the battery positive cable terminal (1) to the starter solenoid stud and tighten the fastener (2) to 9 N.m (80 lb in)
Connect the battery positive cable connector (3) to the starter solenoid.
Position the starter (4) into position on the bell housing.

Fig 4: Starter Mounting Fasteners

Courtesy of GENERAL MOTORS COMPANY

Install the starter mounting fasteners (1) and tighten to 58 N.m (43 lb ft)

Fig 5: Cable Conduit Bracket

Courtesy of GENERAL MOTORS COMPANY

Install the battery positive cable conduit bracket (3) to the starter solenoid (2) and tighten the fastener (1) to 9 N.m (80 lb in)

Fig 6: Starter Heat Shield Retaining Clip

Courtesy of GENERAL MOTORS COMPANY

Install the starter heat shield into position on the starter (2) with the retaining clip (1).

Fig 7: Starter Heat Shield

Courtesy of GENERAL MOTORS COMPANY

Install the starter heat shield fastener (1) and tighten to 4.7 N.m (42 lb in)

Fig 8: Battery Positive Cable Bracket Fastener And Battery Negative Cable Ground Fastener

Courtesy of GENERAL MOTORS COMPANY

Install the battery negative cable terminal (1) to the engine block and tighten the fastener (2) to 25 N.m (18 lb ft)
Install the battery positive and negative cable bracket to the transmission stud and tighten the fastener (4) to 9 N.m (80 lb in)

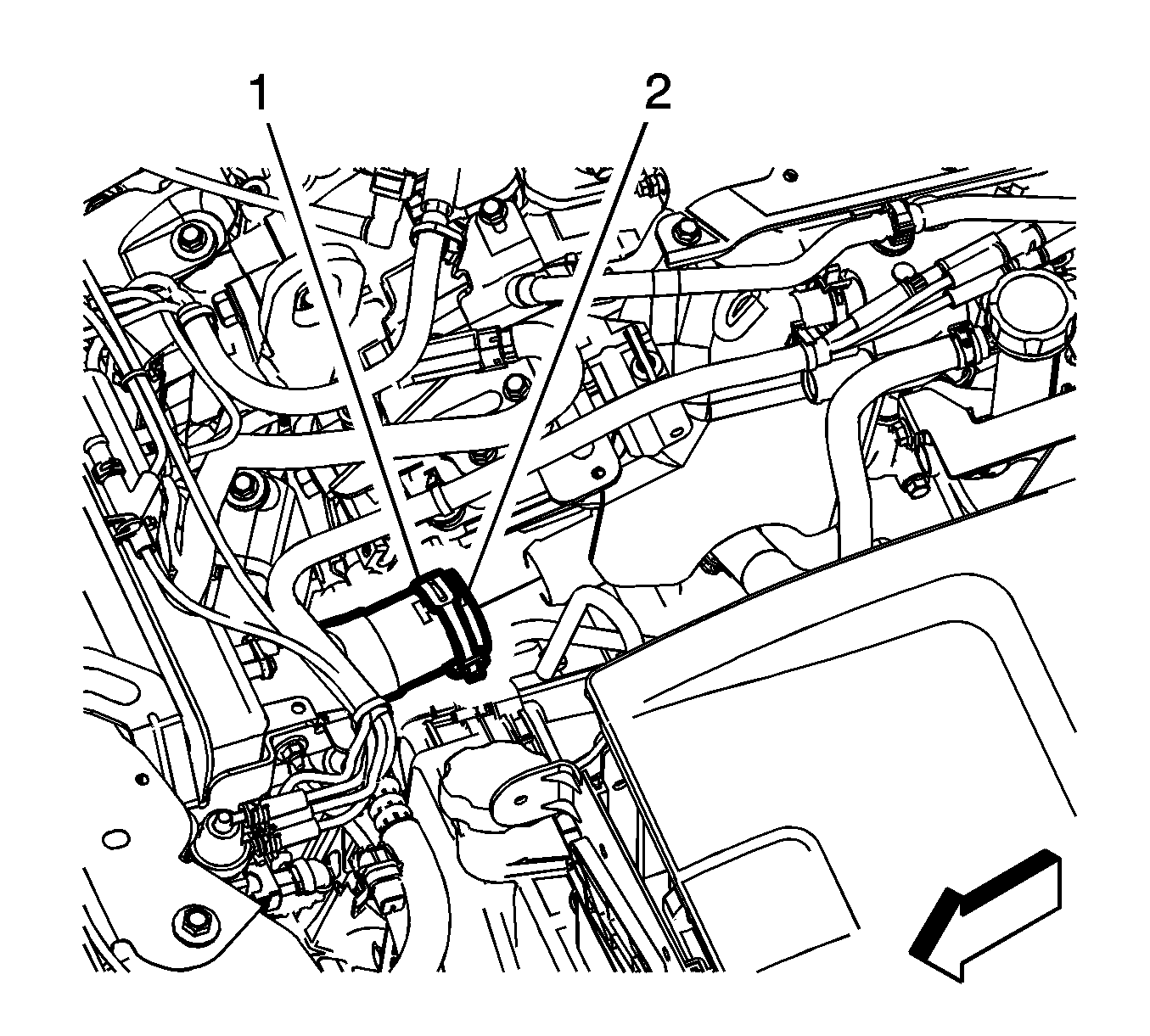

Fig 9: Radiator Outlet Hose And Clamp

Courtesy of GENERAL MOTORS COMPANY

Install Radiator Outlet Hose (2) @Engine Coolant Thermostat Housing Pipe Radiator Outlet Hose Replacement (LF3)

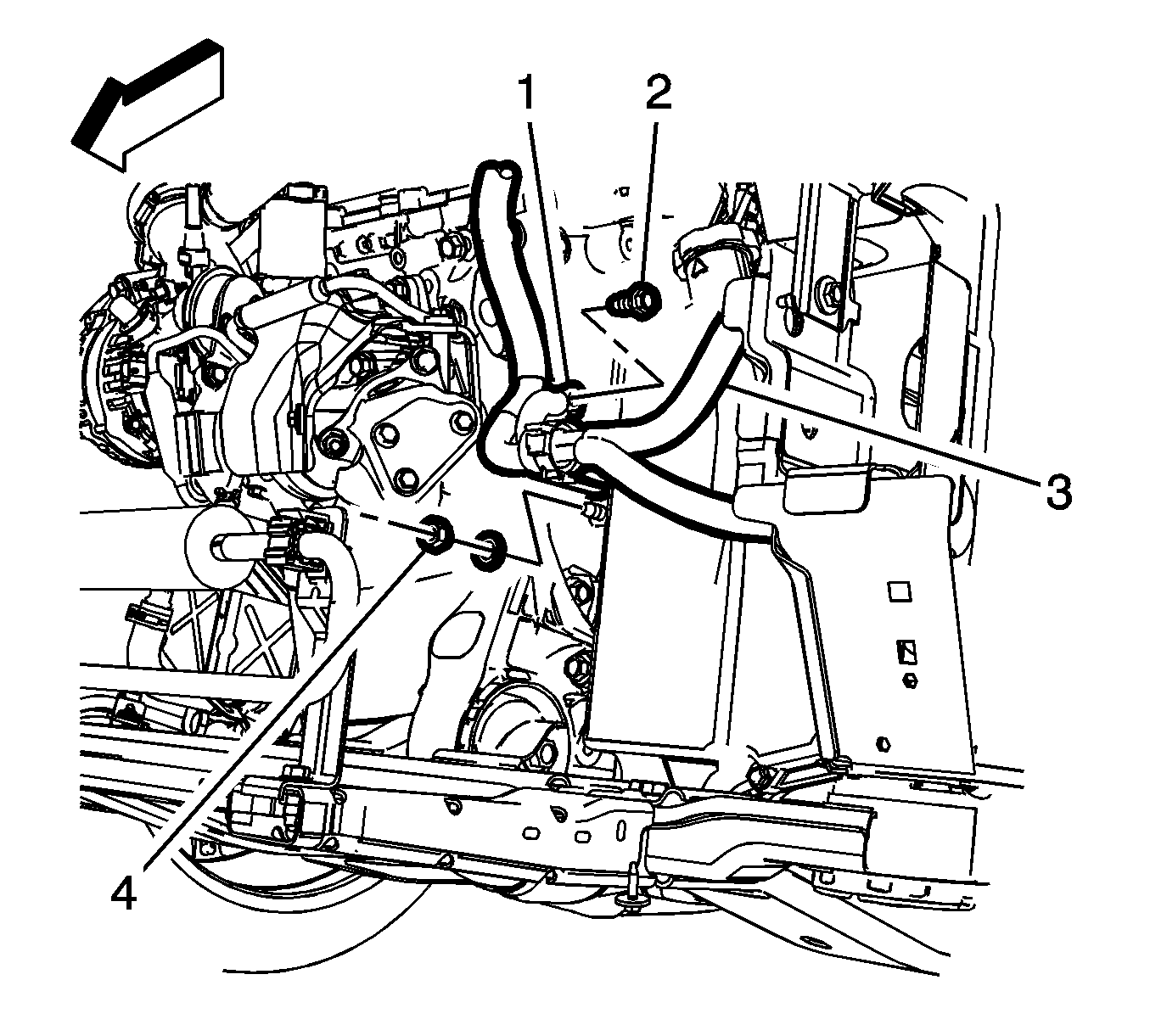

Fig 10: Battery Positive Cable

Courtesy of GENERAL MOTORS COMPANY

Install the battery positive and negative cable bracket (2) to the transmission stud and tighten the fastener (1) to 9 N.m (80 lb in)

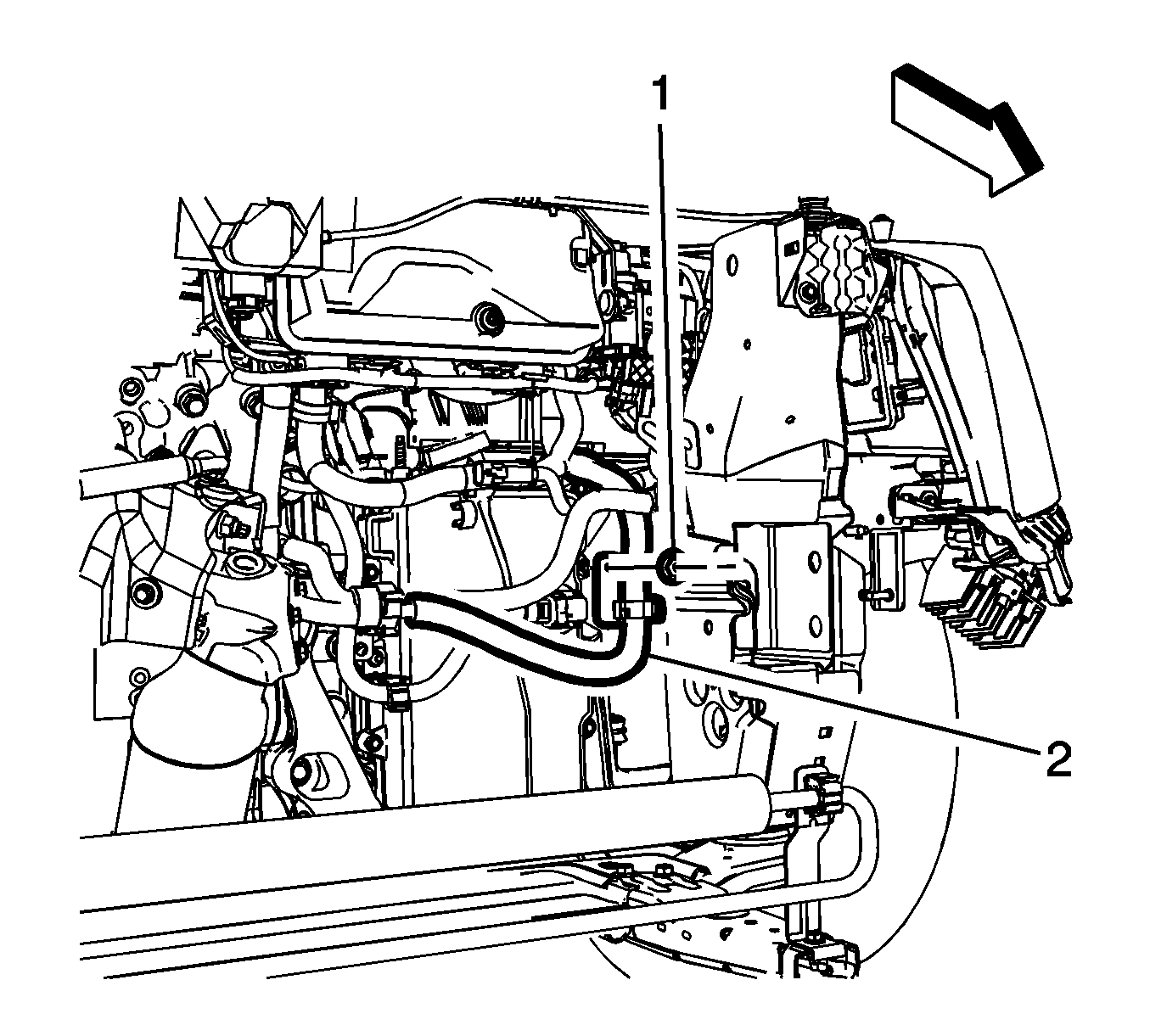

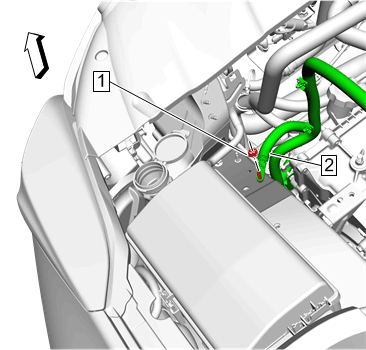

Fig 11: Battery Negative Cable

Courtesy of GENERAL MOTORS COMPANY

Install Battery Negative Cable (2)
Install Battery Negative Cable Fastener (1) and tighten 9 N.m (80 lb in)

Fig 12: Battery Tray Mounting Bolts

Courtesy of GENERAL MOTORS COMPANY

Install Battery Tray (3) - Battery Tray Replacement

Fig 13: Catalytic Converter Nuts

Courtesy of GENERAL MOTORS COMPANY

Install Three-Way Catalytic Converter (3)Three-Way Catalytic Converter Replacement (Front LF3)Three-Way Catalytic Converter Replacement (Rear LF3)

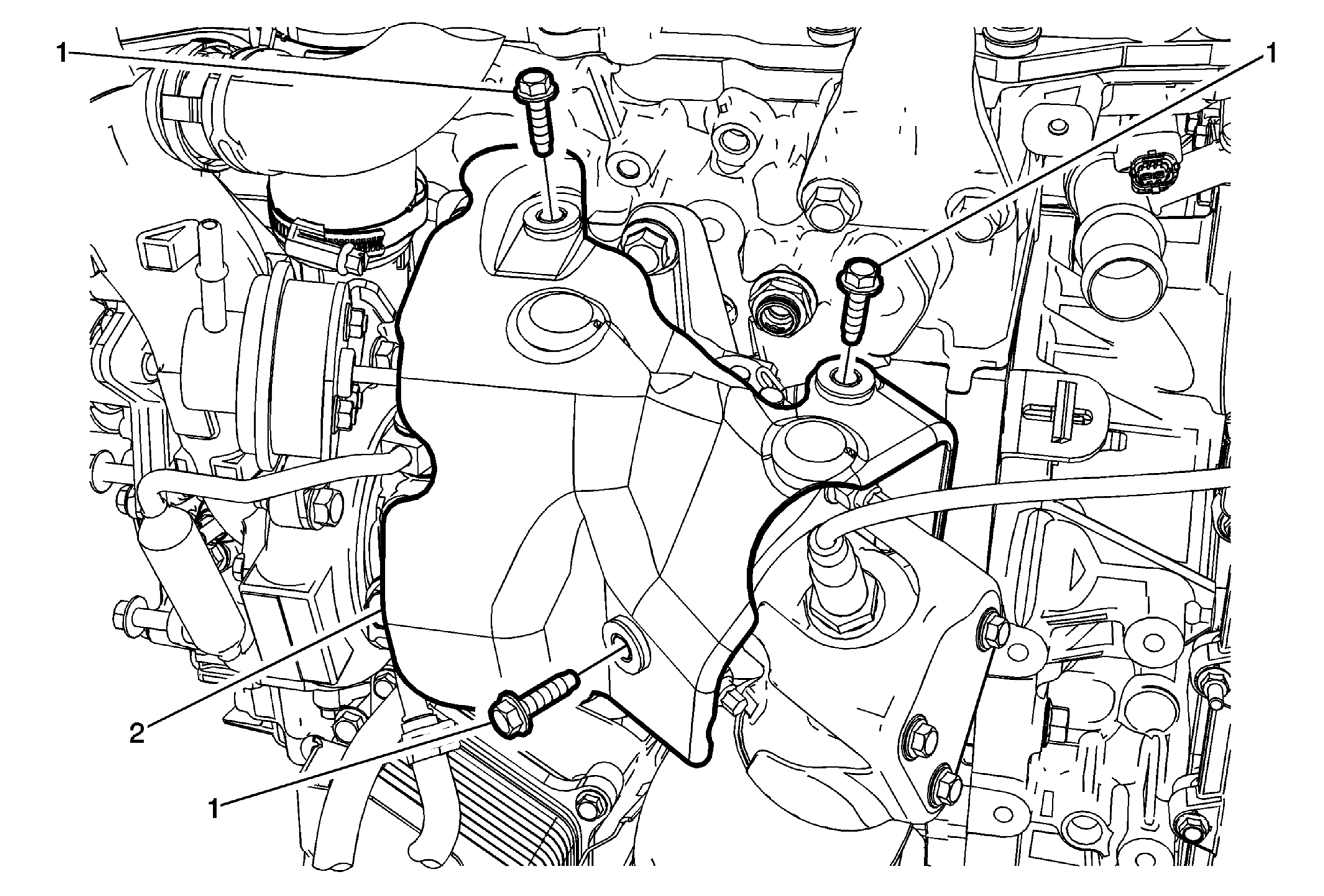

Fig 14: Turbocharger Heat Shield (Front)

Courtesy of GENERAL MOTORS COMPANY

Install the front turbocharger heat shield (3). Turbocharger Heat Shield Replacement (Front)Turbocharger Heat Shield Replacement (Rear)

Fig 15: Turbocharger Wastegate Actuator Vacuum Tank (LF3)

Courtesy of GENERAL MOTORS COMPANY

Install Turbocharger Wastegate Actuator Vacuum Tank (3)Turbocharger Wastegate Actuator Vacuum Tank Replacement (LF3)

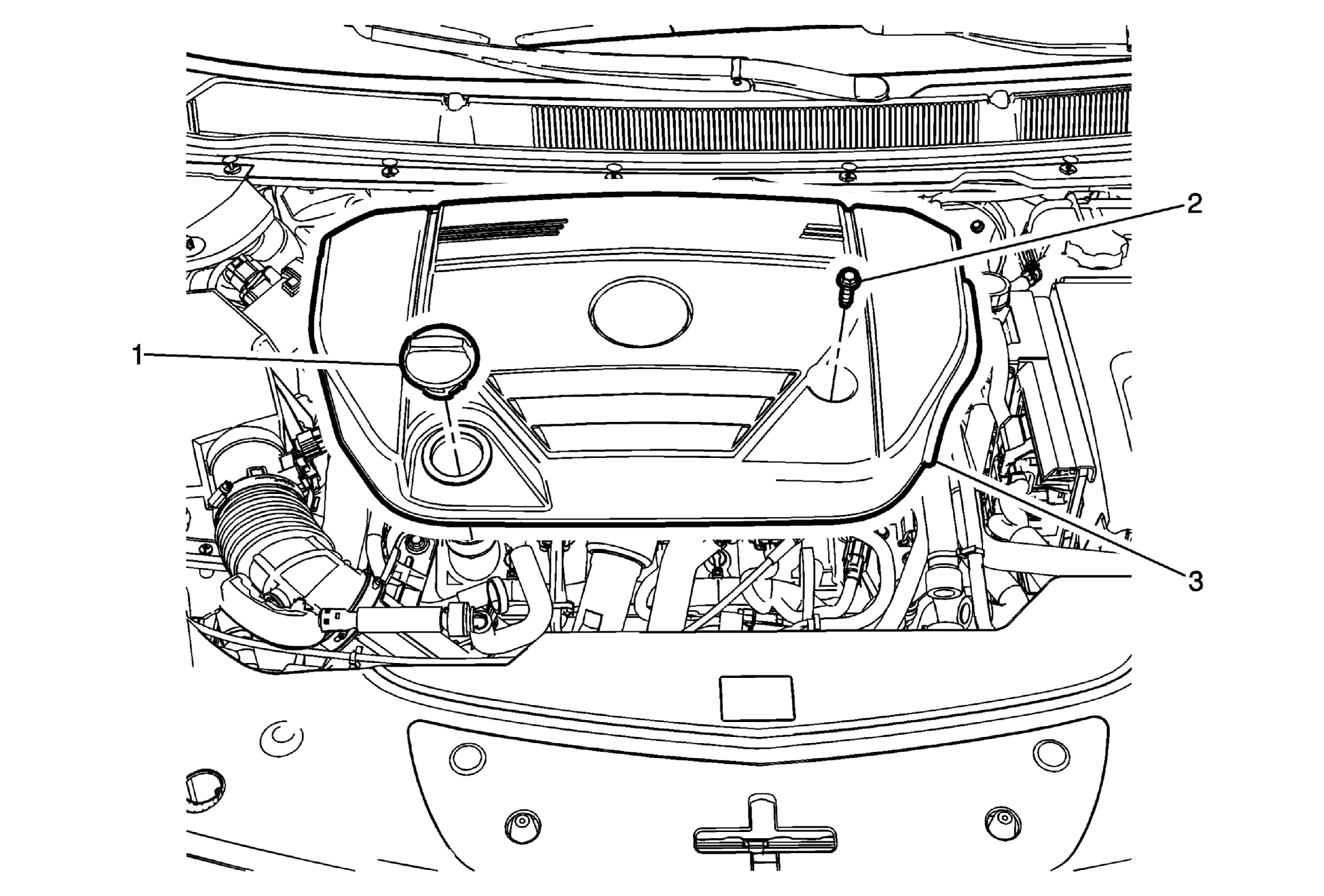

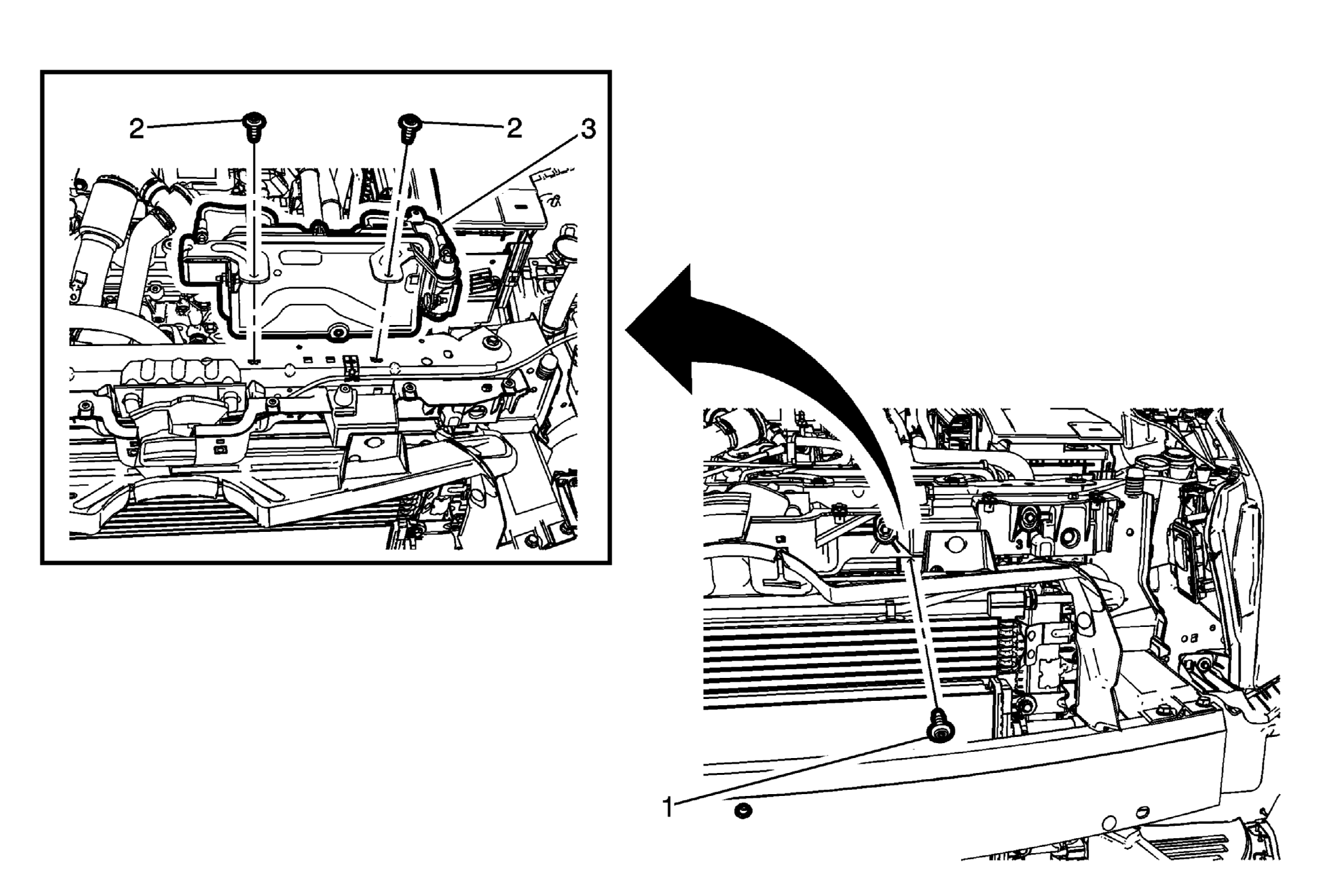

Fig 16: Intake Manifold Cover (LF3)

Courtesy of GENERAL MOTORS COMPANY

Install Intake Manifold Cover (3)Intake Manifold Cover Replacement (LF3)
Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection
