Installation Procedure
- Install the retainers that hold the battery cable harness to the battery tray.

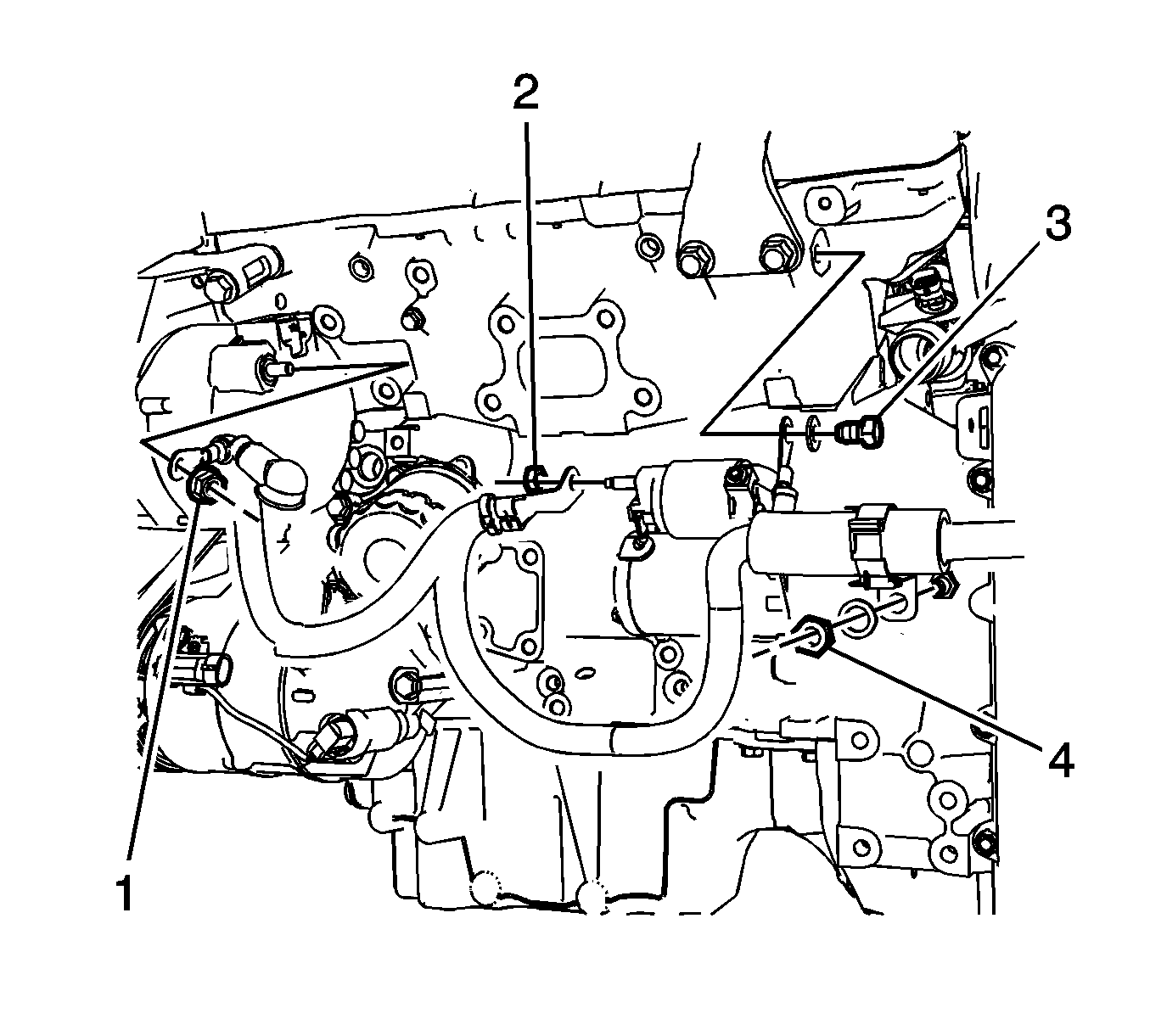

- Install the battery cable harness retainer to the engine block and tighten the fastener (4) to 25 N.m (18 lb ft).
- Install the negative battery cable terminal and fastener (3) to the left rear cylinder head. Tighten to 25 N.m (18 lb ft).
- Install the battery positive cable terminal and fastener (2) to the starter solenoid. Tighten to 9 N.m (80 lb in).
- Install the starter heat shield and tighten to 5 N.m (44 lb in).
- Install the battery positive cable terminal and fastener (1) to the back of the generator. Tighten to 15 N.m (11 lb ft).
- Install the battery negative cable terminal (2) and fastener (1) to the left front frame rail. Tighten to 9 N.m (80 lb in).

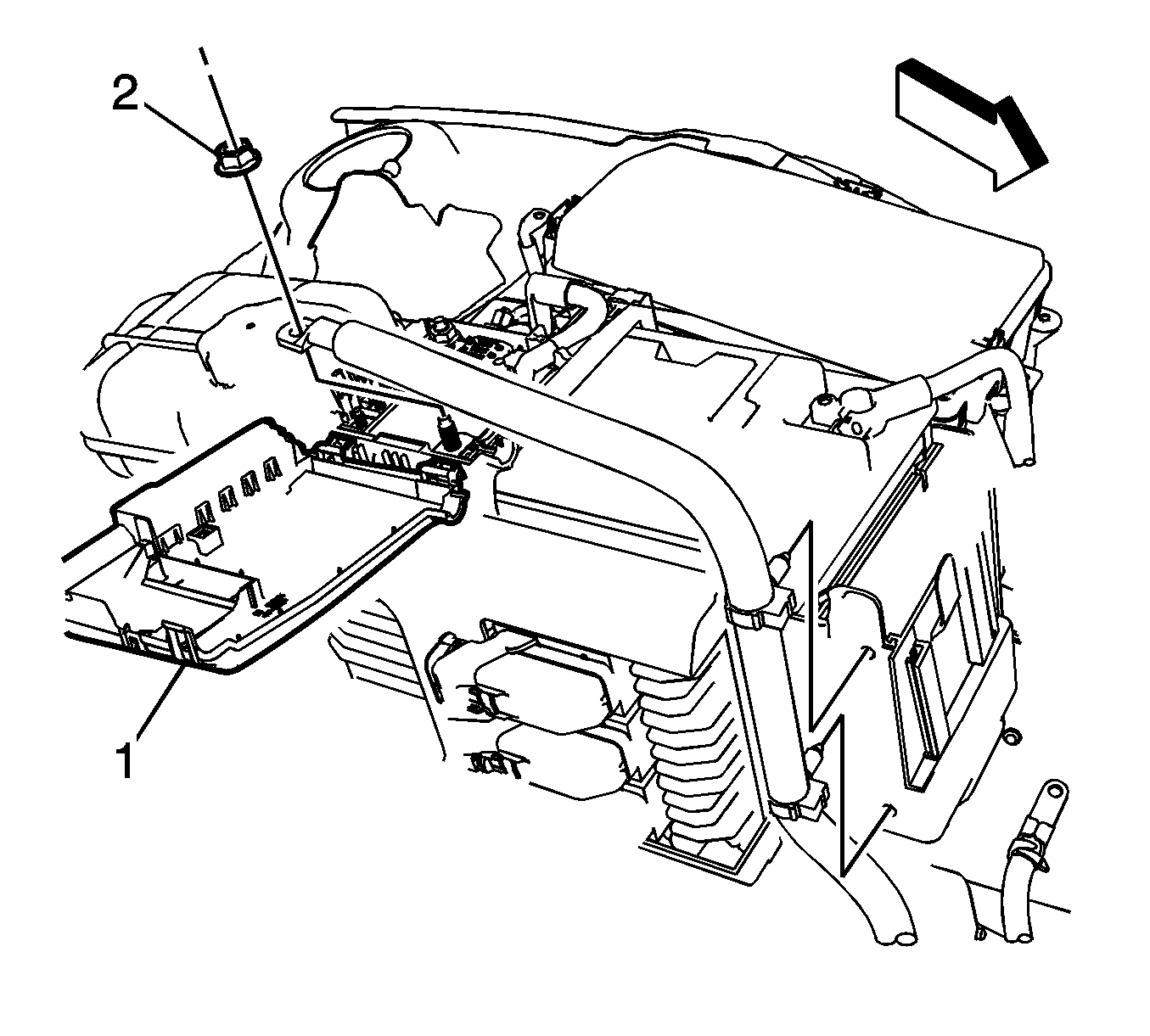

- Install the positive battery cable terminal and fastener (2) to the battery fuse block. Tighten to 12 N.m (106 lb in).
- Close battery fuse block cover (1) and install battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
CAUTION:
Refer to Fastener Caution .
