Head-Up Display Bracket Replacement

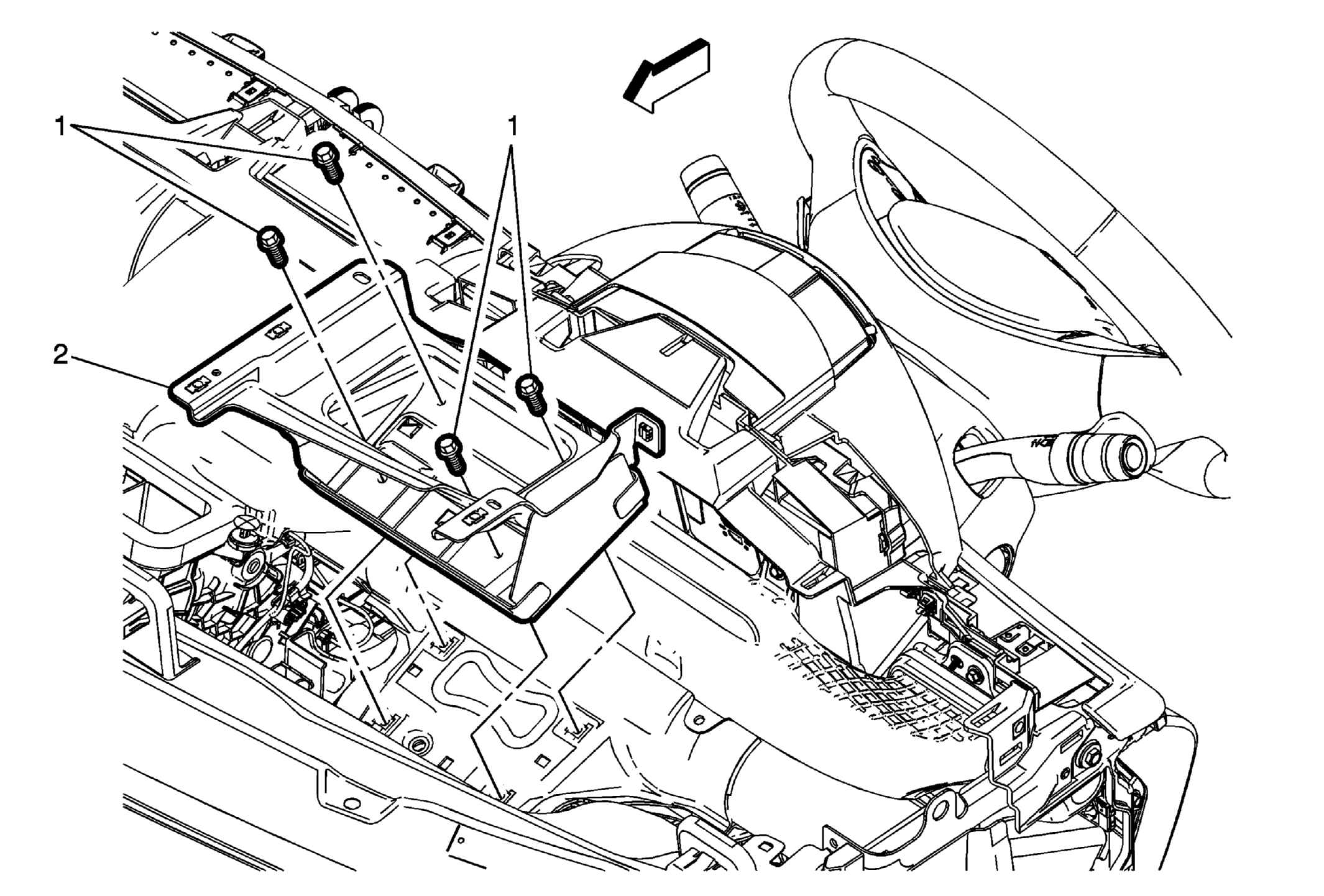

Fig 1: Head-Up Display Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the head up display. Refer to Head-Up Display Replacement .
1	Instrument Cluster Head Up Display Bracket Fasteners (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Instrument Cluster Head Up Display Bracket
