Exhaust Front Pipe Replacement (AWD)

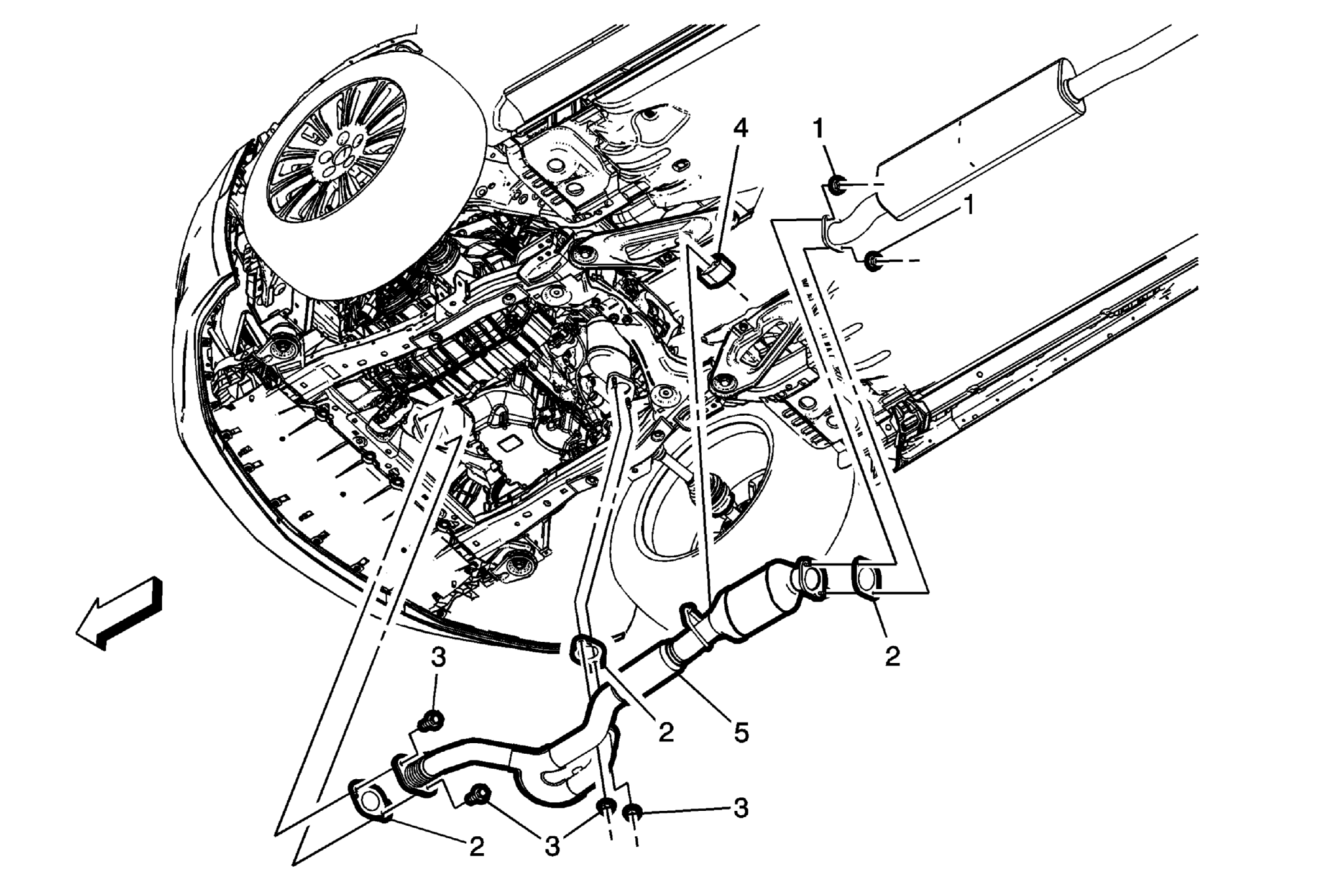

Fig 1: Exhaust Front Pipe & Components (AWD)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Exhaust Service Warning . Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Exhaust Muffler Fasteners (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  18 N.m (13 lb ft)
2	Exhaust Gasket NOTE: Replace with NEW gaskets
3	Exhaust Front Pipe Fasteners (Qty: 4) Tighten  50 N.m (37 lb ft)
4	Exhaust Isolator Nut Tighten  35 N.m (26 lb ft)
5	Exhaust Front Pipe - AWD
