Installation Procedure

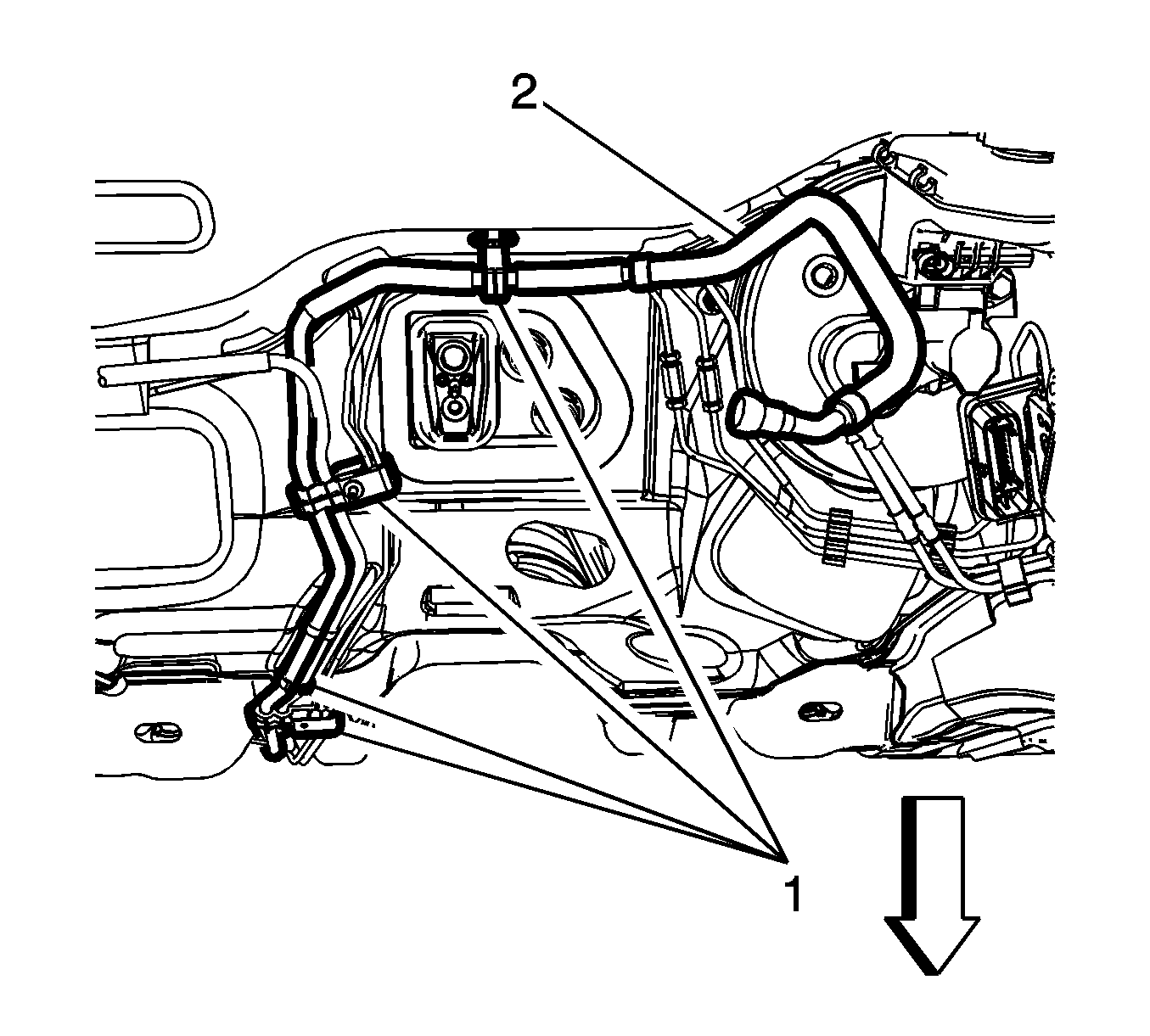

- Install the fuel feed hose (2) to the vehicle.

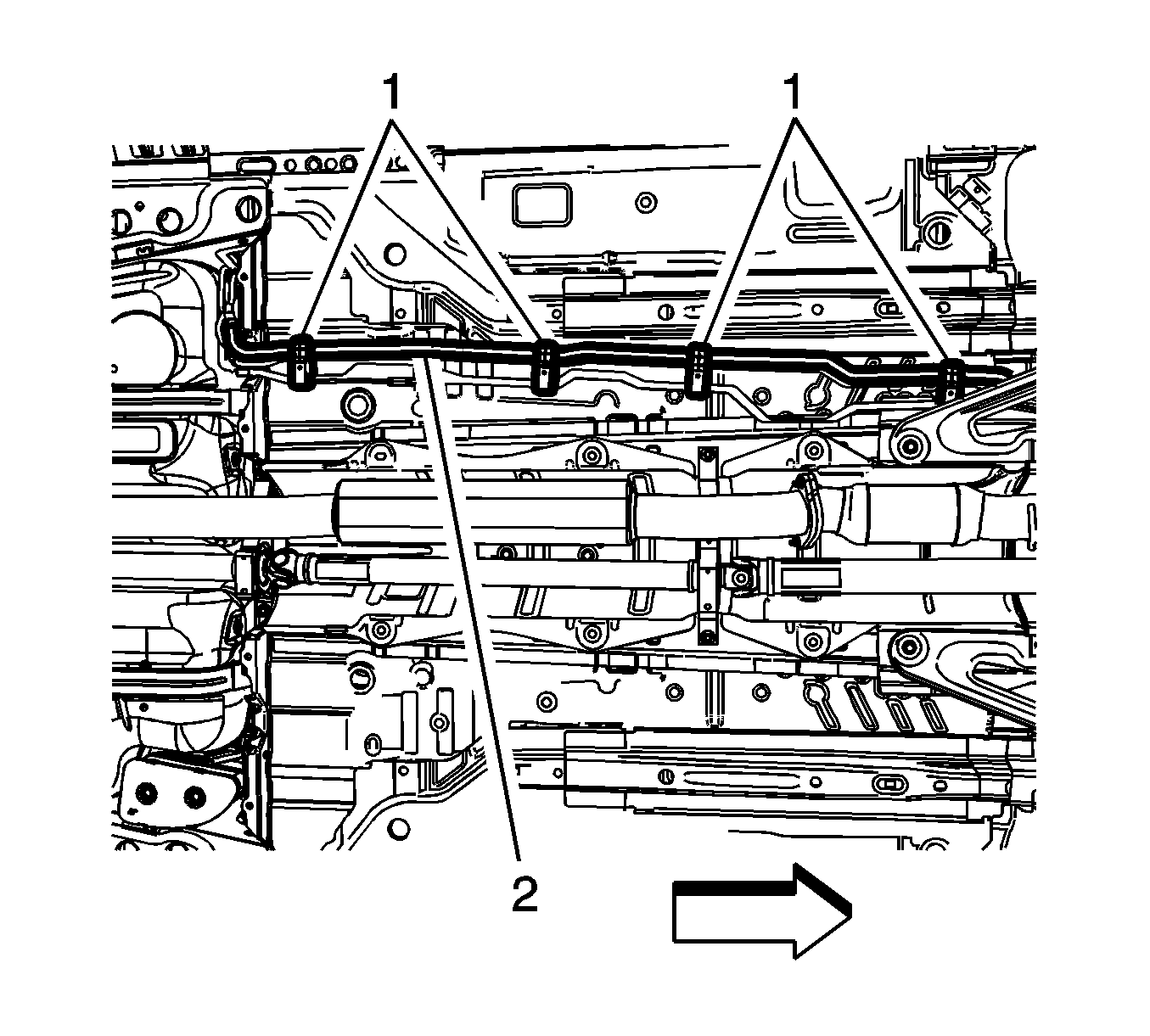

- Install the fuel feed hose (2) to the retainers (1).
- Connect the fuel feed hose (2) to the fuel feed pipe. Refer to Plastic Collar Quick Connect Fitting Service .
- Connect the fuel feed hose (2) to the retainers (1).
- Install the air condition evaporator thermal expansion valve heat and brake pipe shield. Refer to Air Conditioning Evaporator Thermal Expansion Valve Heat and Brake Pipe Shield Replacement (LF3) .
- Install the drivetrain and front suspension frame. Refer to Drivetrain and Front Suspension Frame Replacement .
- Lower the vehicle.

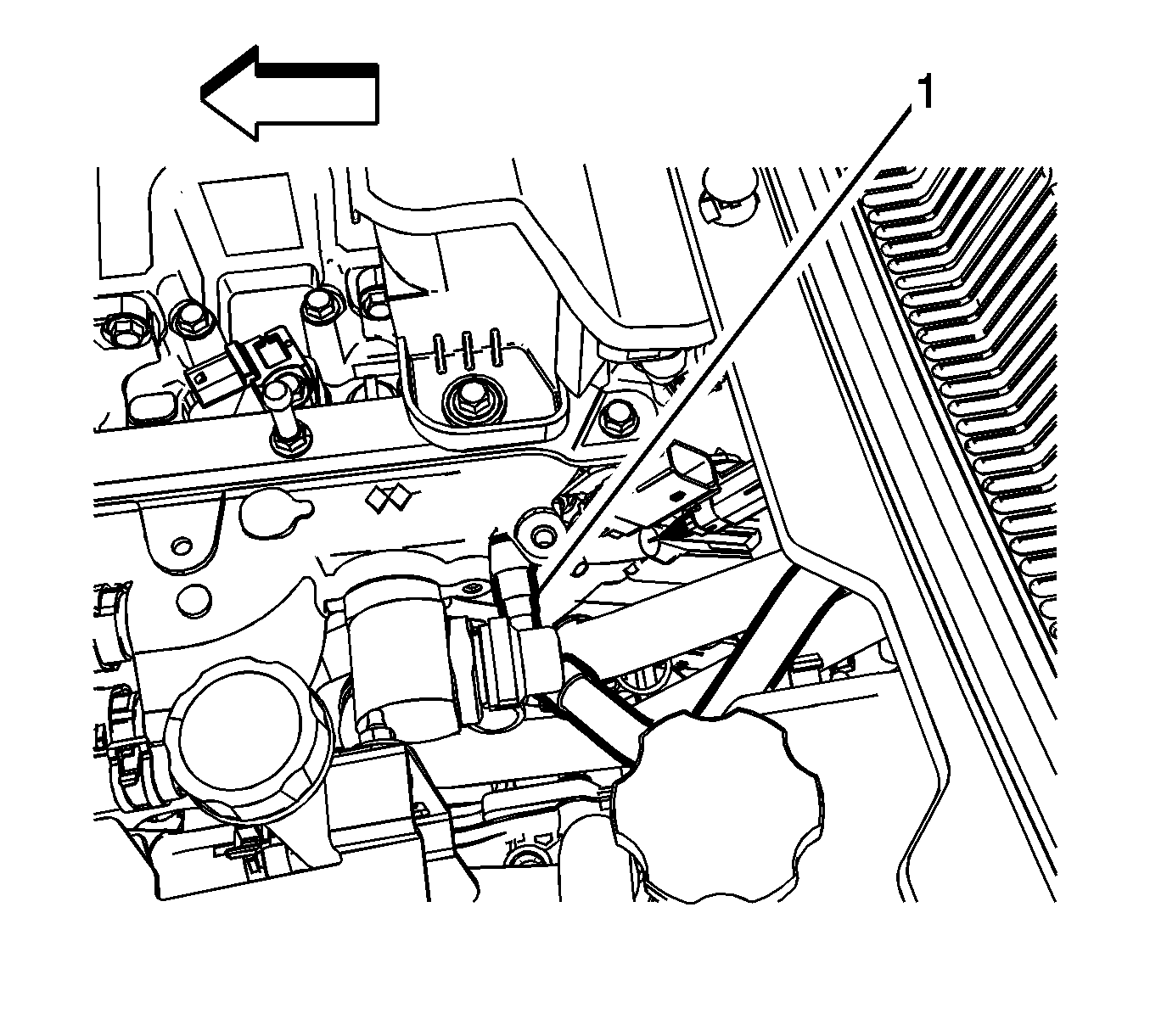

- Connect the fuel feed hose (1) to the fuel rail. Refer to Metal Collar Quick Connect Fitting Service .
- Connect fuel pressure sensor electrical connector.
- Install the air cleaner outlet resonator. Refer to Air Cleaner Outlet Resonator Replacement (LF3) .
- Install the intake manifold cover. Refer to Intake Manifold Cover Replacement (LFX)Intake Manifold Cover Replacement (LF3) .
