Manifold Absolute Pressure Sensor Replacement (LFX)

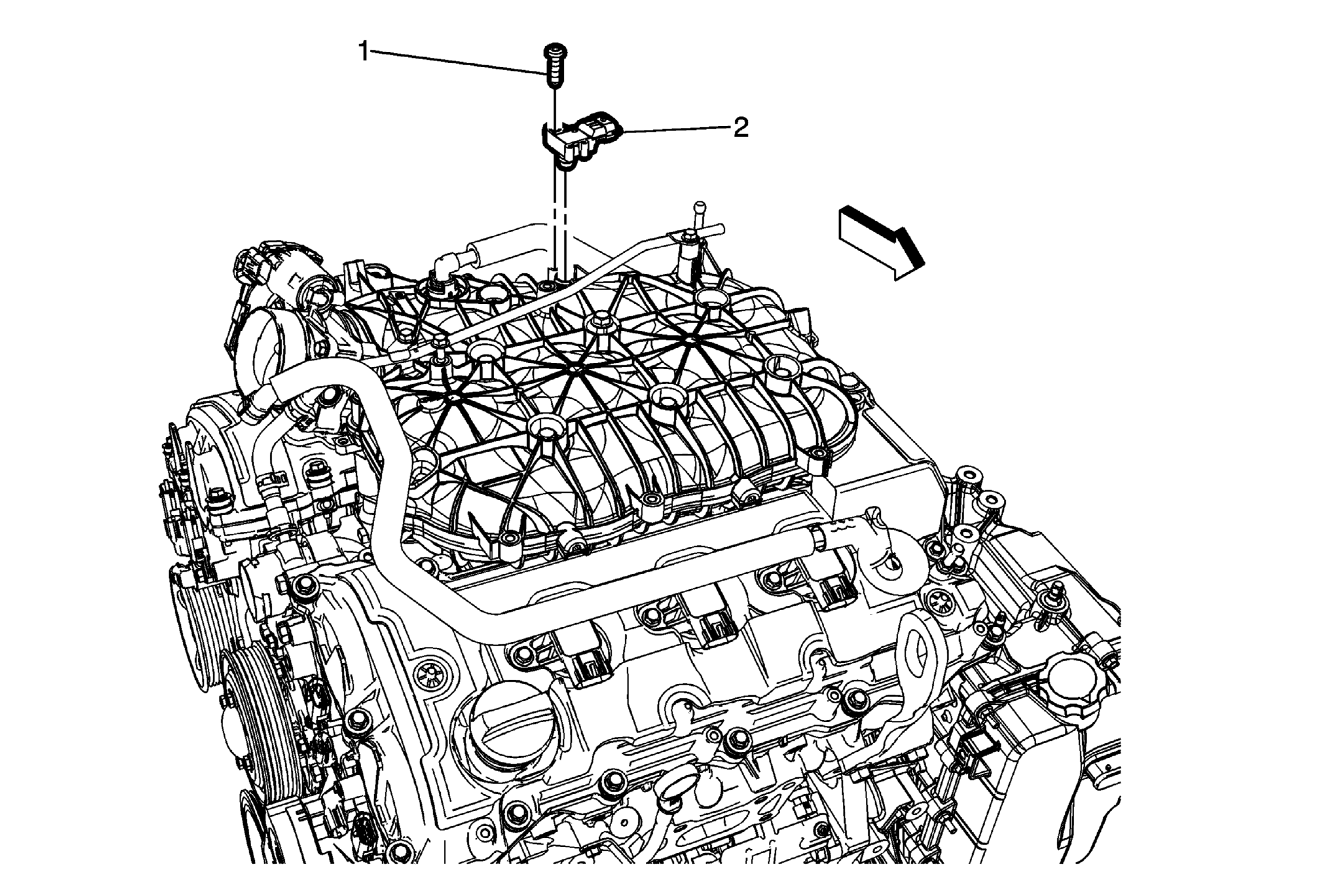

Fig 1: Manifold Absolute Pressure Sensor (LFX)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Intake Manifold Cover Replacement (LFX)
1	Manifold Absolute Pressure Sensor Fastener CAUTION: Refer to Fastener Caution .
2	Manifold Absolute Pressure Sensor Procedure  Disconnect the electrical connector.
