Rear and Right Side of Engine Components (LF3)

Rear and Right Side of Engine Components (LF3)

Items
1. Q38 Throttle Body Q38 Throttle Body

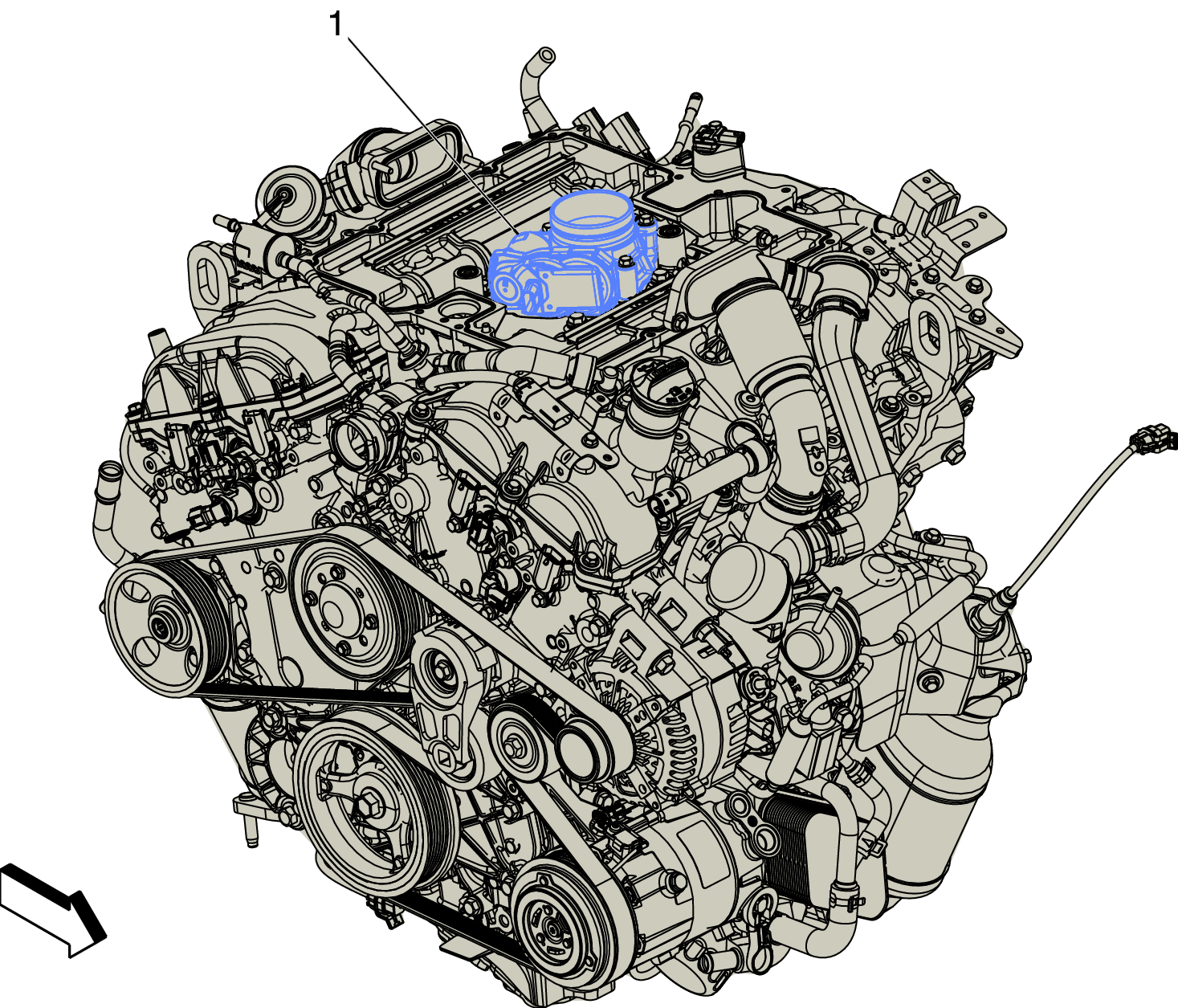

Fig 1: Rear and Right Side of Engine Components (LF3)
GM3749853Courtesy of GENERAL MOTORS COMPANY
