Power Steering Fluid Cooler Bracket Replacement

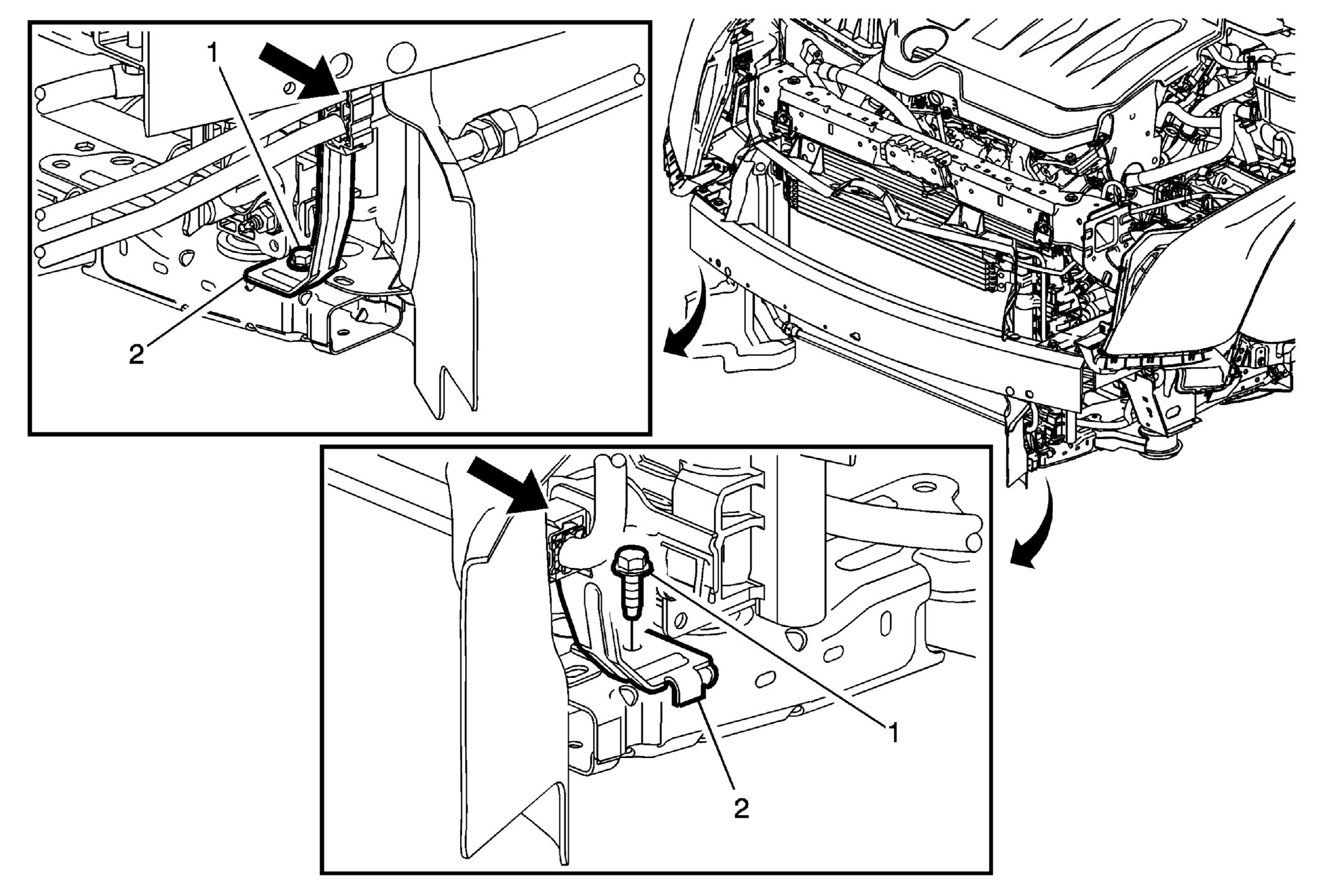

Fig 1: Power Steering Fluid Cooler Bracket & Bolt

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove Front Bumper Fascia. Refer to Front Bumper Fascia Replacement
1	Power Steering Fluid Cooler Bracket Bolt CAUTION: Refer to Fastener Caution . Tighten  9 N.m (80 lb in)
2	Power Steering Fluid Cooler Bracket Procedure  Release the power steering hoses and power steering fluid cooler from the plastic clips as needed.
