Power Steering Pump Bracket Replacement (LF3)

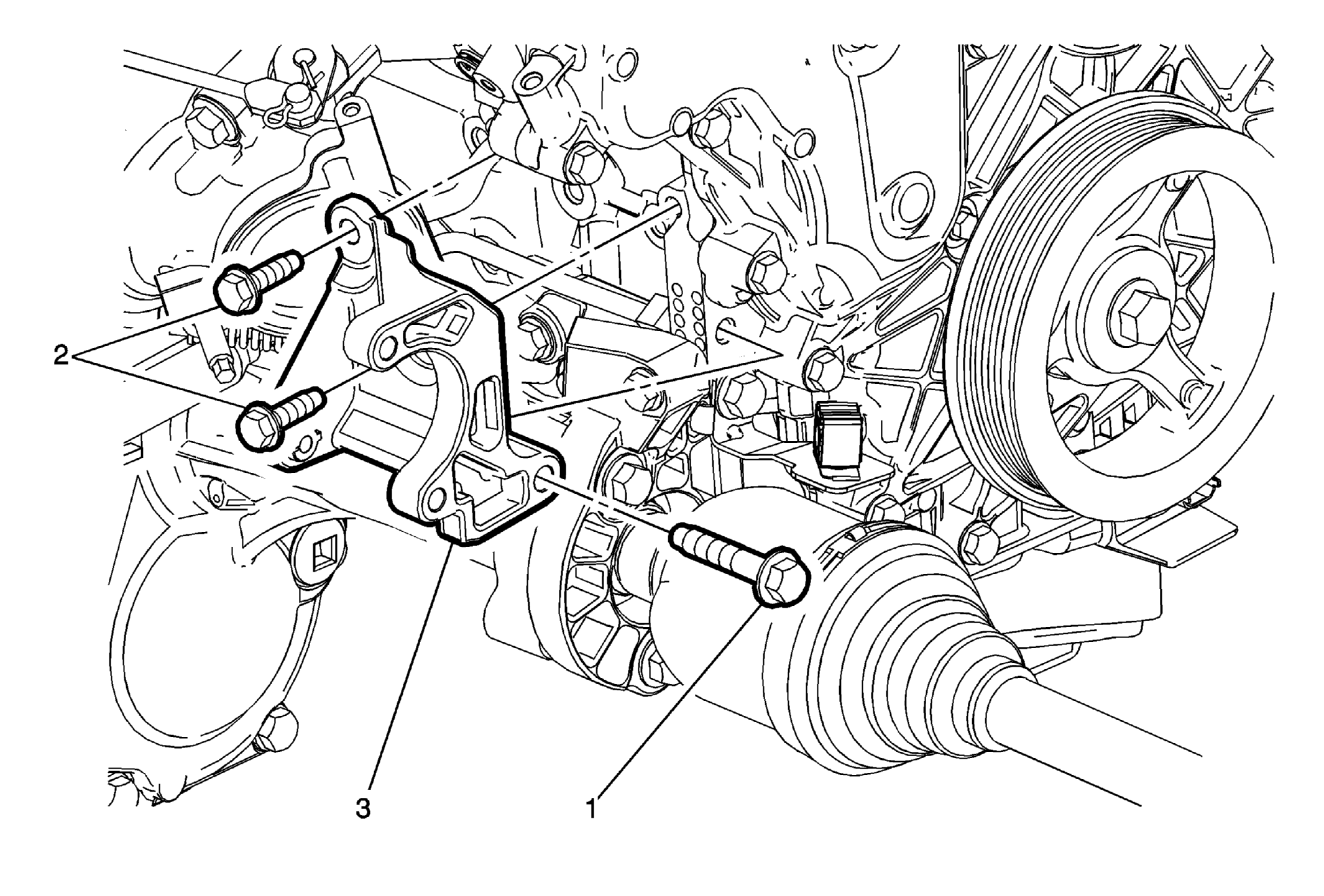

Fig 1: Power Steering Pump Bracket (LF3)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove Power Steering Pump. Refer to Power Steering Pump Replacement (LF3)
1	Power Steering Pump Bracket Bolt-Long CAUTION: Refer to Fastener Caution . Tighten  58 N.m (43 lb ft)
2	Power Steering Pump Bracket Bolt-Short (Qty: 2) Tighten  22 N.m (16 lb ft)
3	Power Steering Pump Bracket
