Installation Procedure

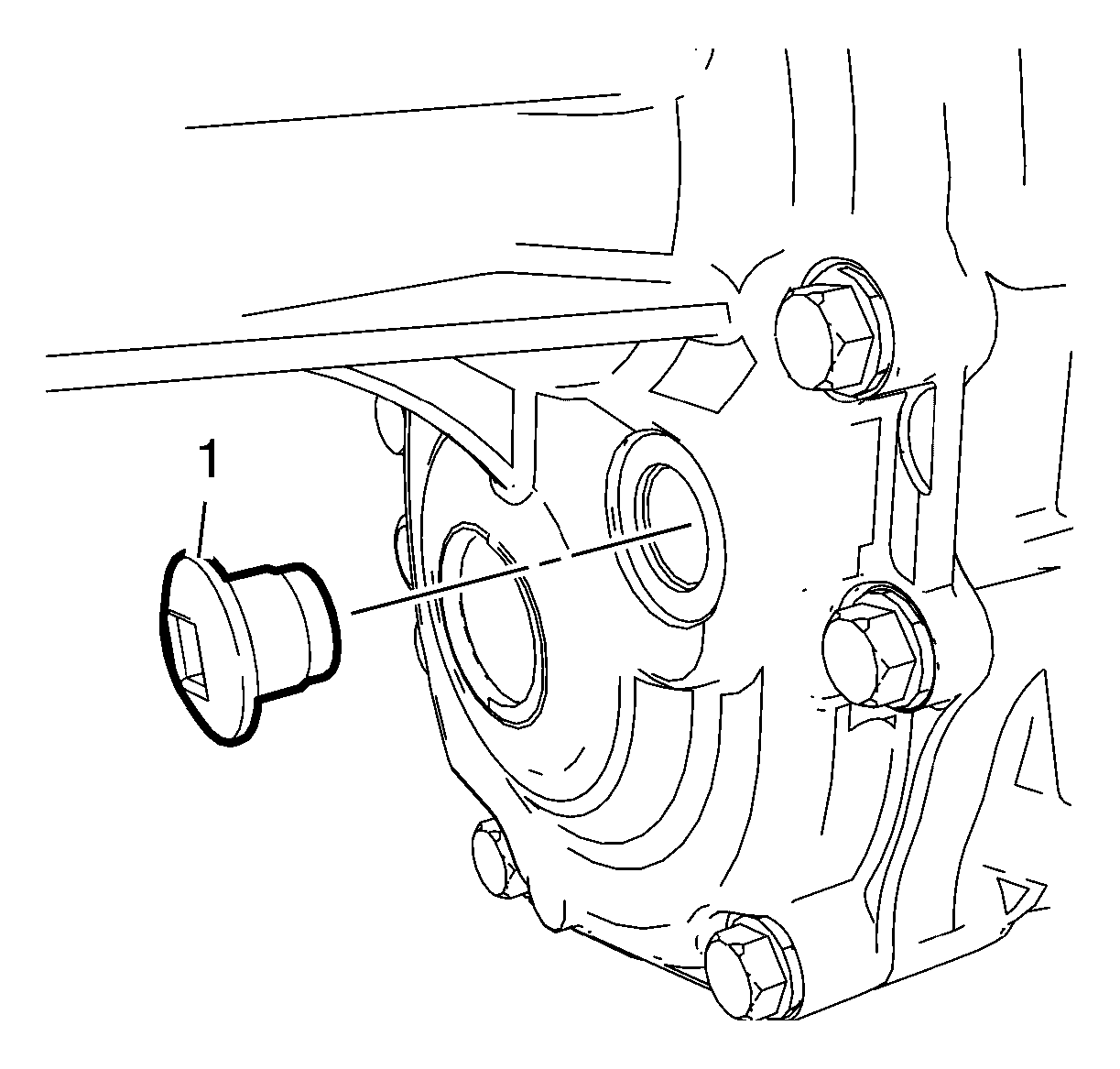

    Fig 1: Identifying Transfer Case Fill Plug
    GM2371788Courtesy of GENERAL MOTORS COMPANY
  1. Install a NEW fill plug (1) and seal and tighten to 40 N.m (30 lb ft).
  2. Lower the vehicle.
