Object Detection Wiring Schematics
›
Comprehensive Safety Serial Data (UGN/UVZ)
Comprehensive Safety Serial Data (UGN/UVZ)

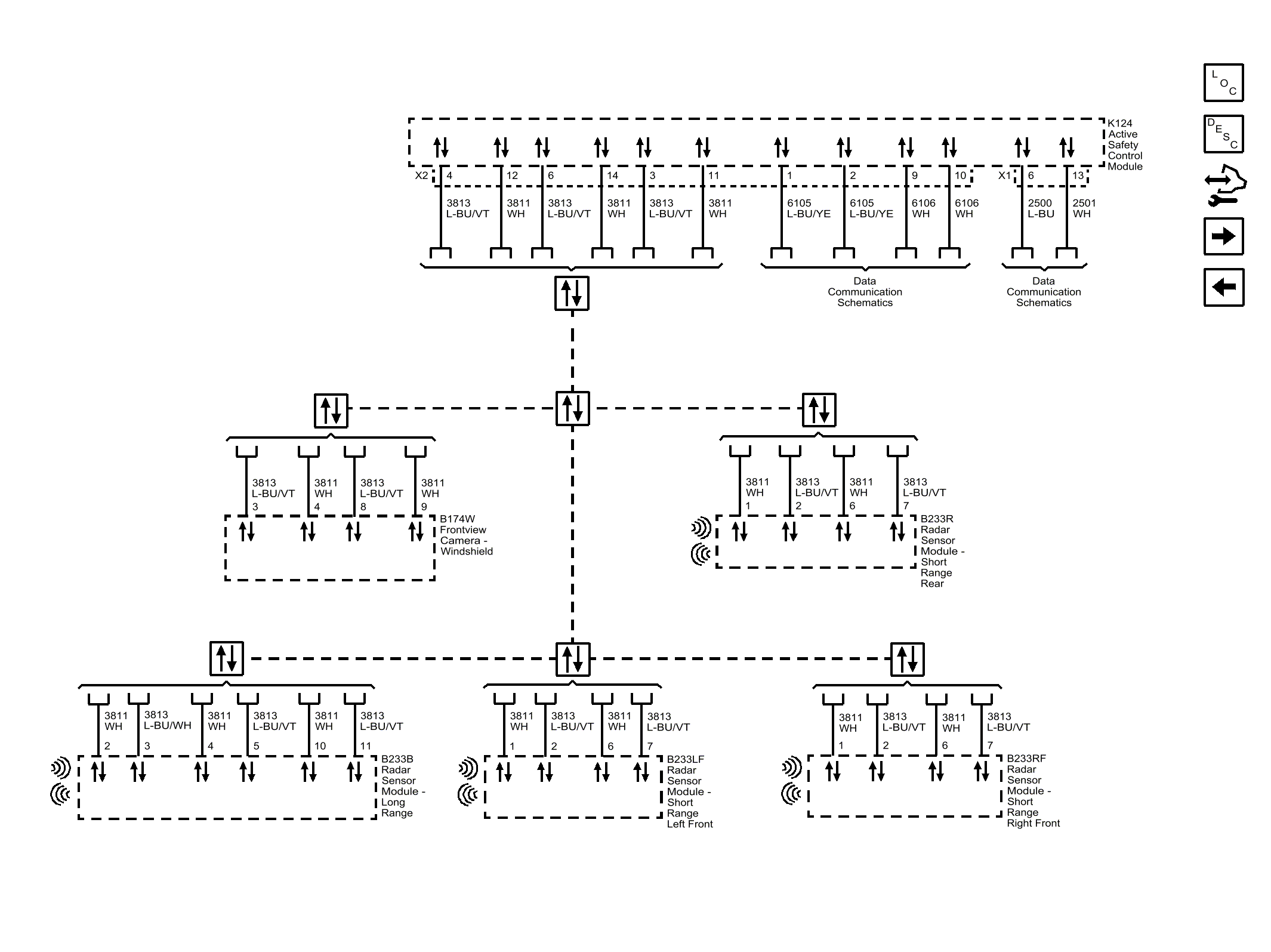

Fig 1: Comprehensive Safety Serial Data (UGN/UVZ)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
