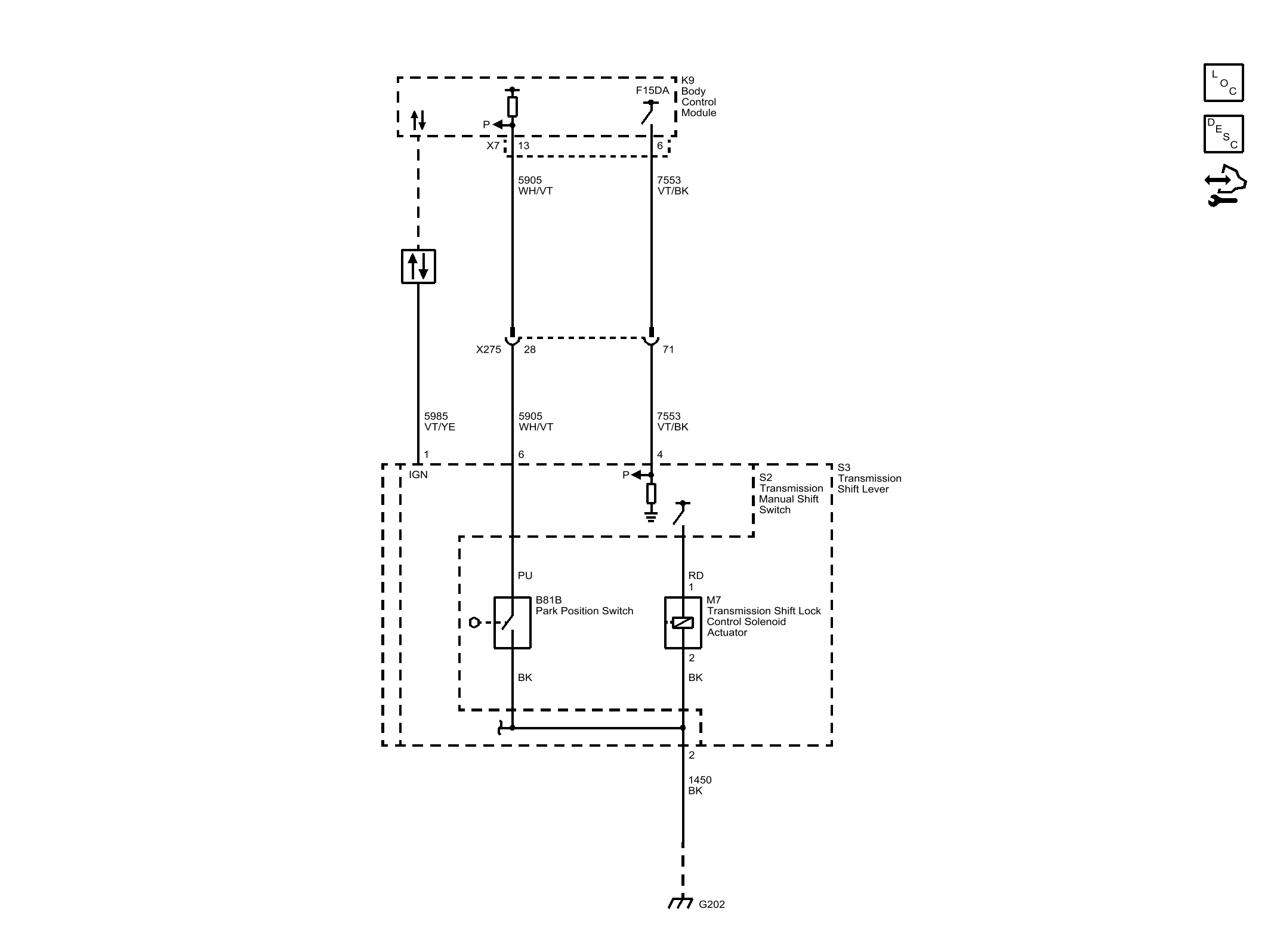

Home › Cadillac › 2018 › ATS Base, 4D Sedan, AWD › Repair and Diagnosis › Transmission › Automatic Trans › Shift Lock Control System › Schematic Wiring Diagrams › Shift Lock Control Wiring Schematics › Shift Lock Control (M5N/M5U)
