Night Vision Module Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Instrument Panel Lower Trim Panel Insulator Replacement - Left Side

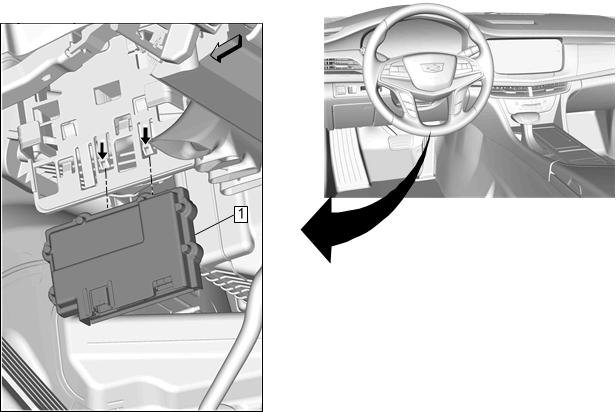

1	Night Vision Module Procedure Disconnect the electrical connectors. Release the retaining tabs. Control Module References for programming and setup information, if required.

Callout

Component Name

Night Vision Module

Procedure
