Image Display Camera Wiring Schematics
›

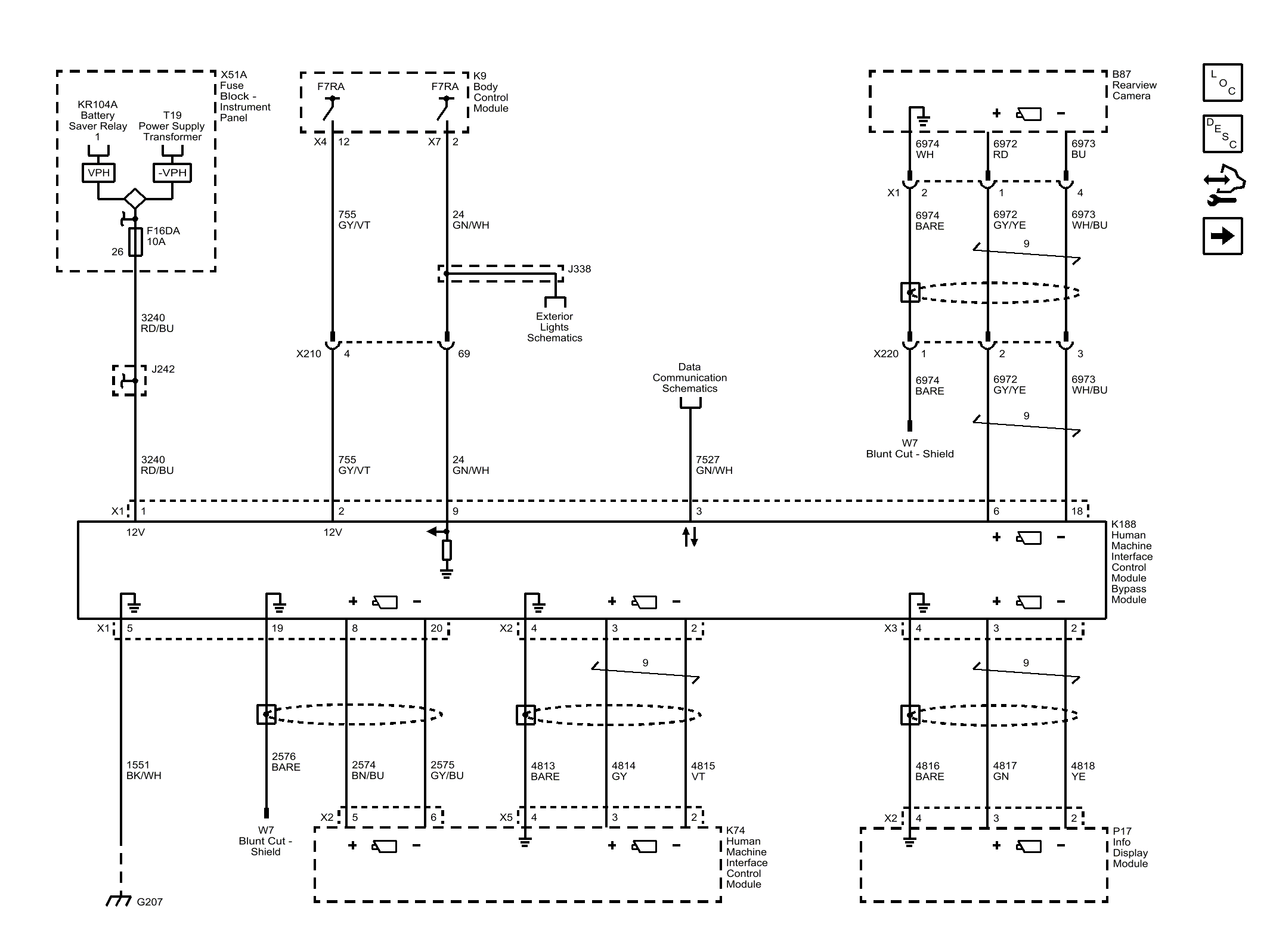

HMI Control Module Bypass Module (EF7, Z49 and CV4)
HMI Control Module Bypass Module (EF7, Z49 and CV4)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
