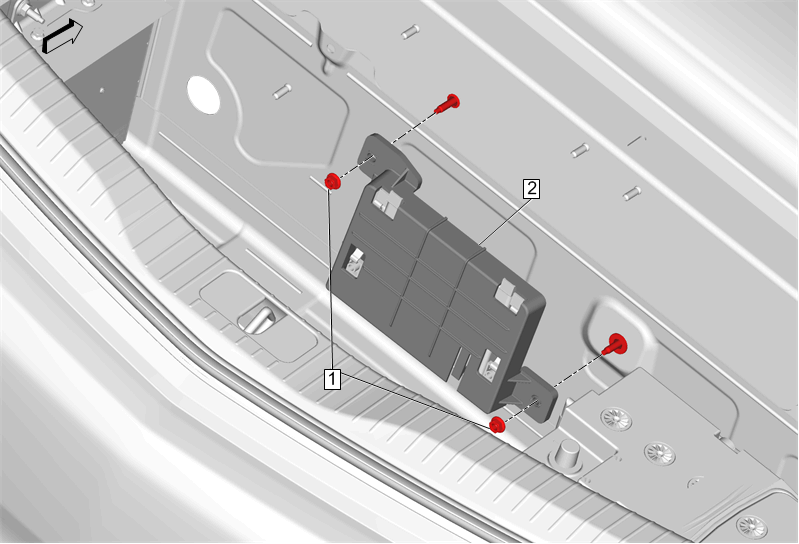

Active Safety Control Module Bracket Replacement (HP9 without UKL)
| Callout | Component Name |
|---|---|
| Preliminary Procedure Rear Compartment Floor Stowage Compartment Tray Replacement (With HP9) |
|
| 1 | Active Safety Control Module Bracket Nut [2x]
CAUTION:
Tighten 9 N.m (80 lb in) |
| 2 | Active Safety Control Module Bracket Procedure Disconnect the electrical connectors. |
