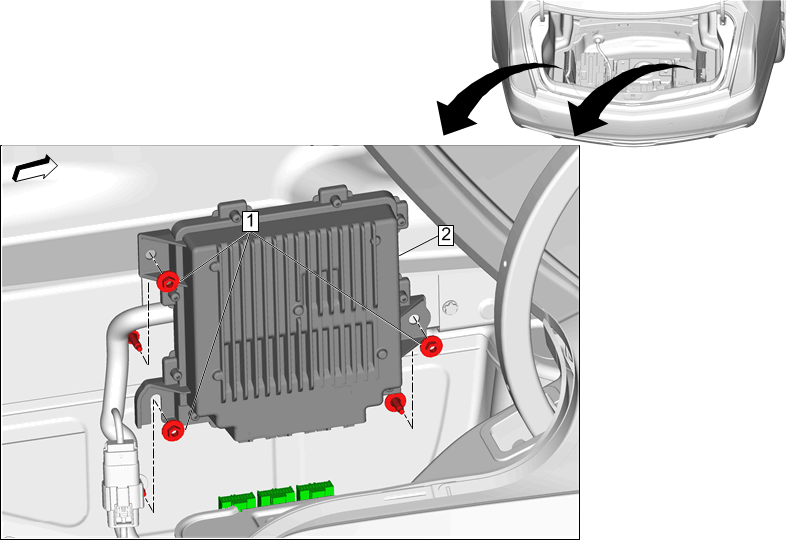

Active Safety Control Module Replacement (With UKL)
| Callout | Component Name |
|---|---|
| Preliminary Procedure Rear Compartment Floor Stowage Compartment Cover Replacement (Without HP9) |
|
| 1 | Active Safety Control Module Bracket Nut [3x]
CAUTION:
Procedure Reposition the wiring harness. Tighten 9 N.m (80 lb in) |
| 2 | Active Safety Control Module Procedure
|
