Driver Assistance Systems Wiring Schematics (UKL)
›

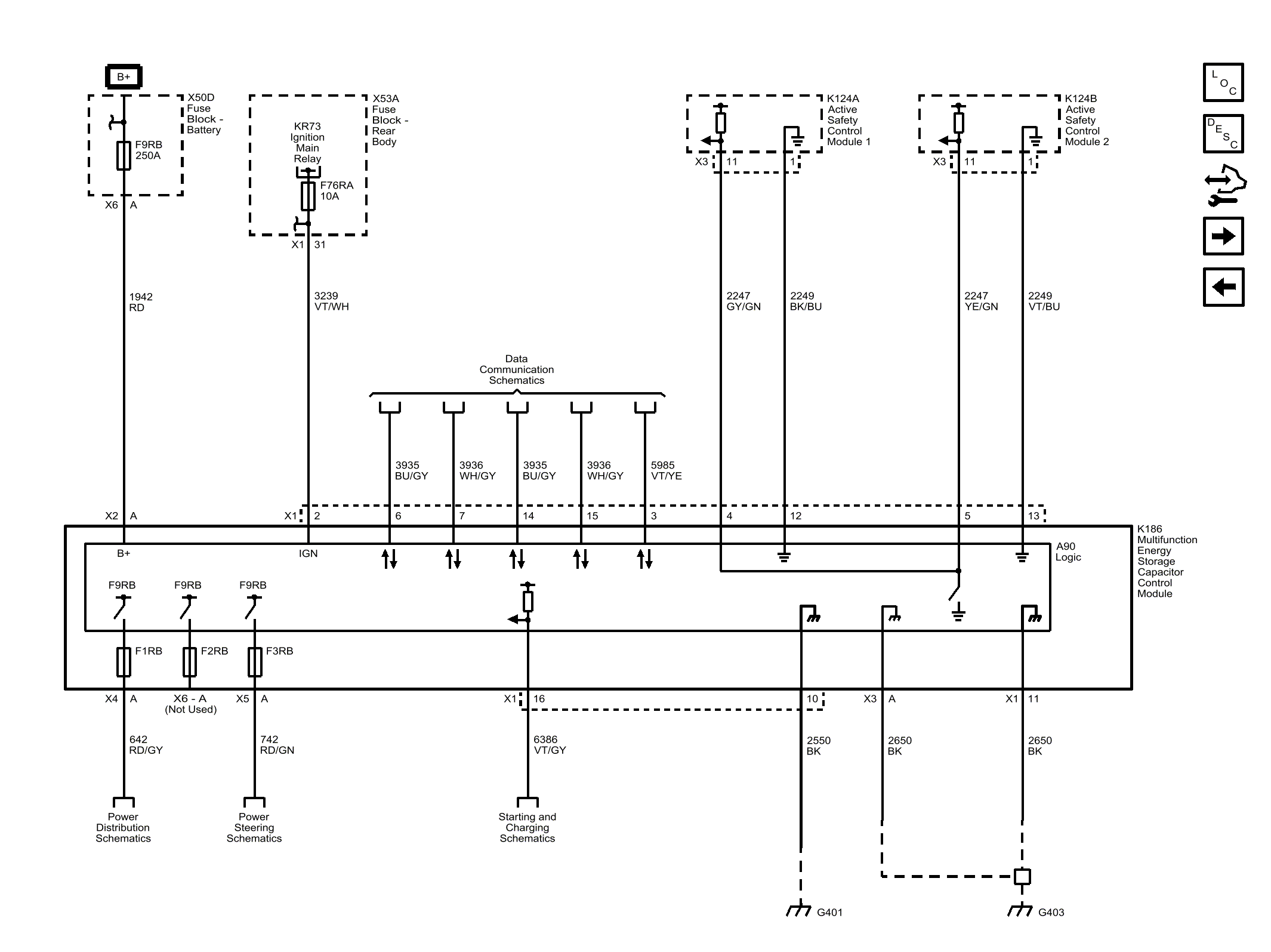

Multifunction Energy Storage Capacitor Control Module
Multifunction Energy Storage Capacitor Control Module
