Cellular System, Entertainment System, And Navigation System - Schematic Wiring Diagrams
›
Schematic Wiring Diagrams
›
Radio/Navigation System Wiring Schematics
›

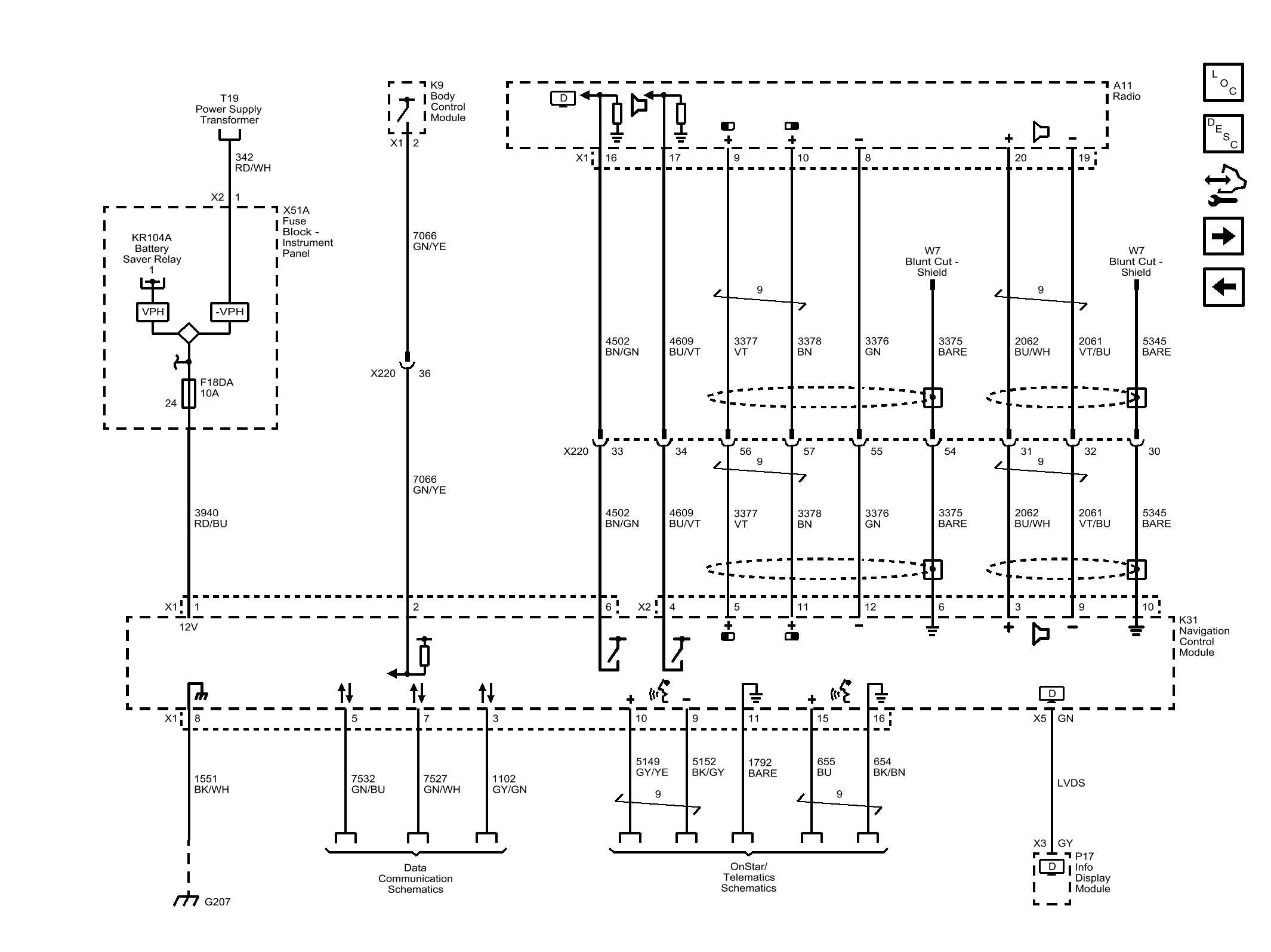

Navigation Control Module (CW1)
Navigation Control Module (CW1)
