Liftgate Wiring Schematics
›

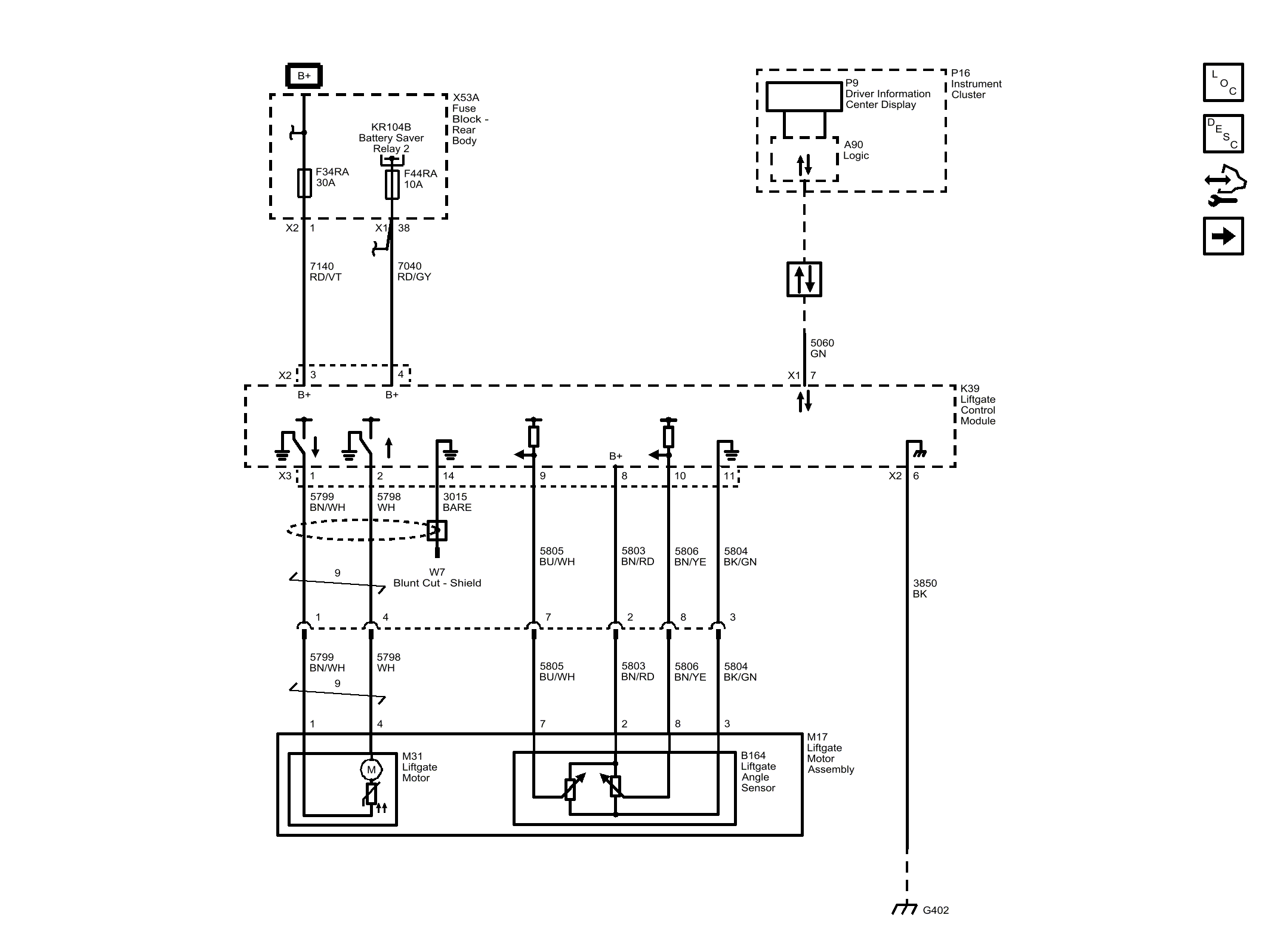

Module Power, Ground, Serial Data, and Liftgate Motor
Module Power, Ground, Serial Data, and Liftgate Motor
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
