Theft Deterrent Module Replacement

Courtesy of GENERAL MOTORS COMPANY

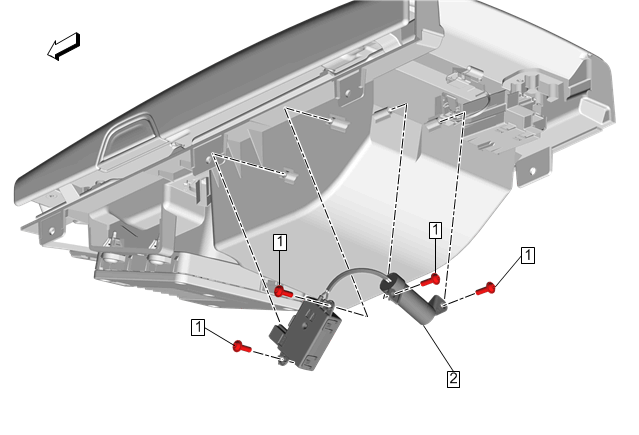

Callout	Component Name
Preliminary Procedure  Front Floor Console Compartment Replacement
1	Theft Deterrent Module Bolt [4x] CAUTION: Refer to Fastener Caution . Tighten  1 N.m (9 lb in)
2	Theft Deterrent Module
