Front Seat Heater Control Module Replacement

Courtesy of GENERAL MOTORS COMPANY

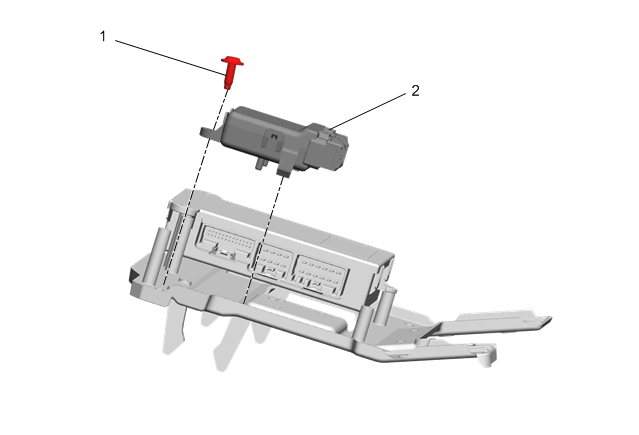

Callout	Component Name
Preliminary Procedure  Front Seat Adjuster Memory Module Bracket Replacement
1	Front Seat Heater Control Module Fastener CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Front Seat Heater Control Module Procedure  Disconnect the electrical connectors.
