Front Side Door Window Inner Sealing Strip Replacement

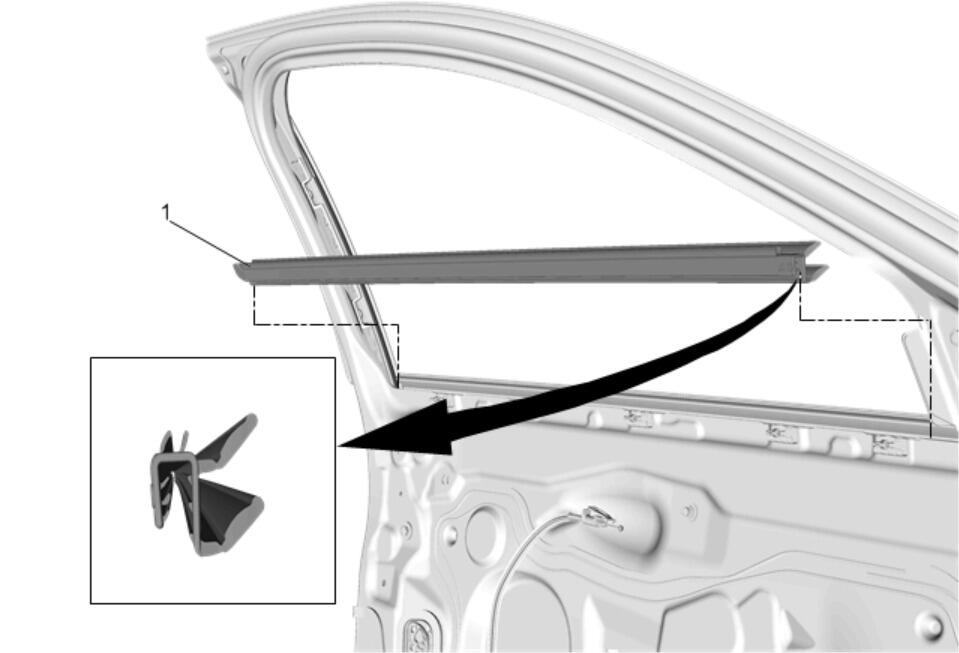

GM4251787

Callout

Component Name

Preliminary Procedures

Place the front door window in the full down position.
Front Side Door Window Garnish Molding Replacement

1

Front Side Door Window Inner Sealing Strip

Procedure

Lift the front side door window inner strip off the pinch-weld flange.
Press firmly to insert the front side door window inner strip back on the door flange.

NOTE:

Inspect the window for proper operation before installing the door trim.
