Rear Side Door Window Inner Sealing Strip Replacement

GM4444724

Callout

Component Name

Preliminary Procedures

Place the rear door window in the full down position.
Rear Side Door Trim Replacement
Rear Side Door Window Garnish Molding Replacement

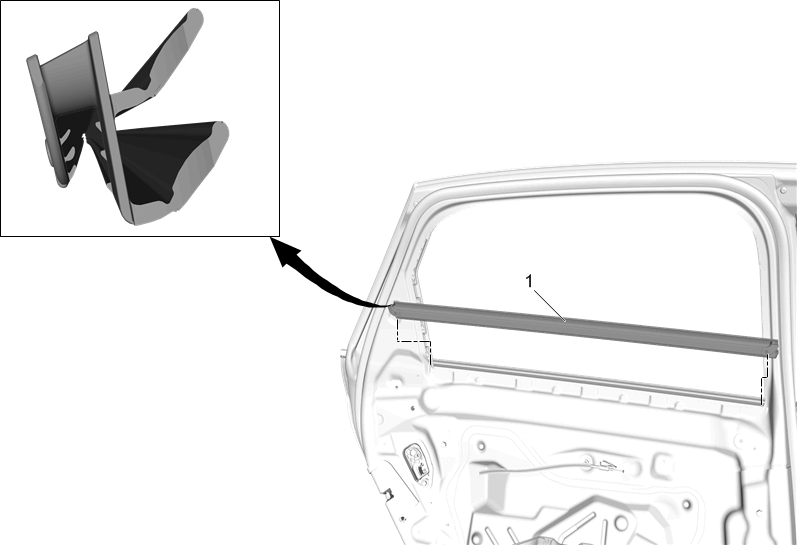

1

Rear Side Door Window Inner Sealing Strip

Procedure

Lift the rear side door window inner strip off the pinch-weld flange.
Press firmly to insert the rear side door window inner strip back on the door flange.

NOTE:

Inspect the window for proper operation before installing the door trim.
