FixVault
Home
›
Cadillac
›
2018
›
CT6 Plug-In
›
Repair and Diagnosis
›
Body & Frame
›
Windows
›
Fixed And MOVEABLE Window System
›
Schematic Wiring Diagrams
›
Moveable Window Wiring Schematics
›
Driver

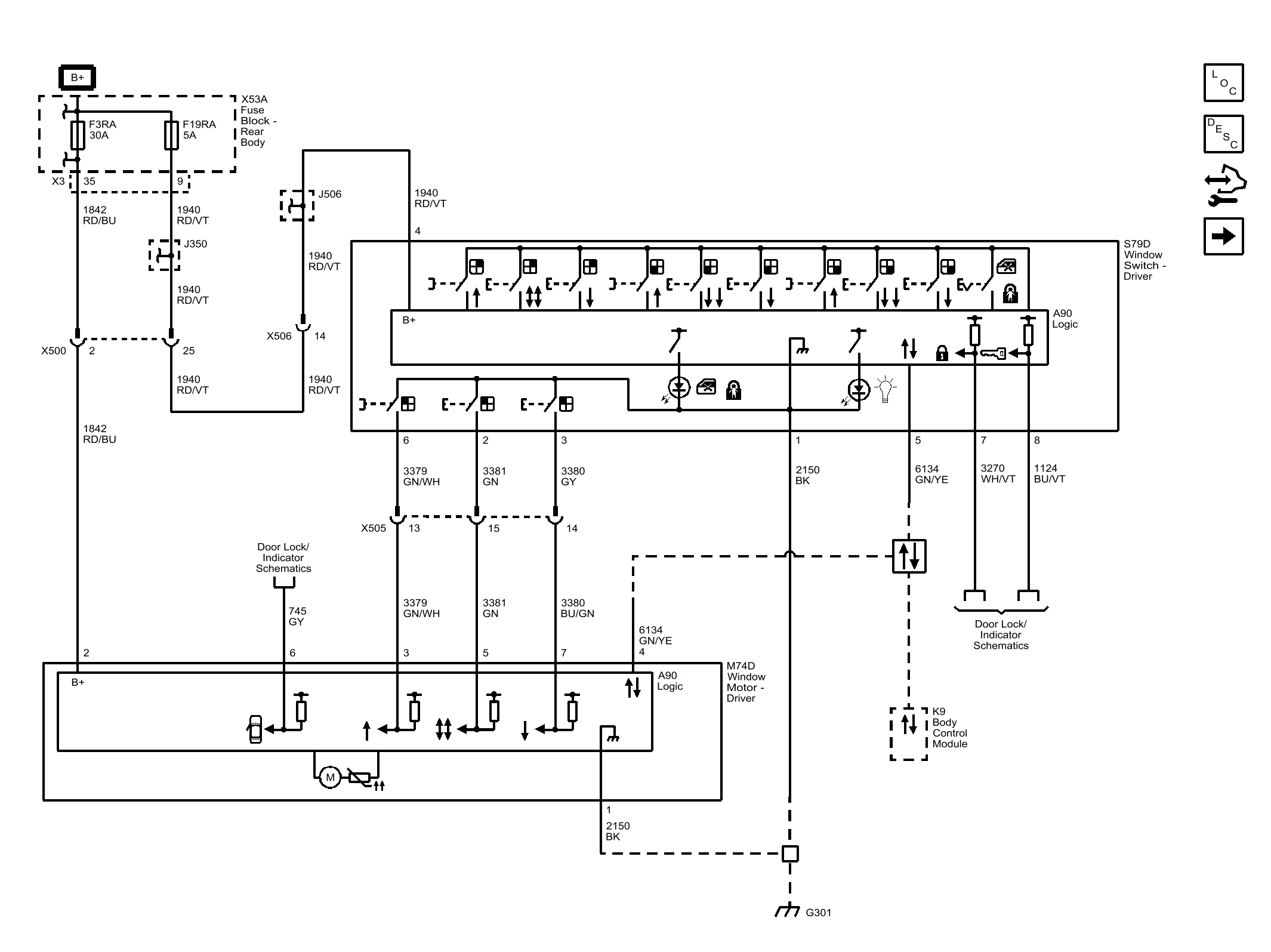

Moveable Window Wiring Schematics: Driver
