Home › Cadillac › 2018 › CT6 Plug-In › Repair and Diagnosis › Body & Frame › Windows › Fixed And MOVEABLE Window System › Schematic Wiring Diagrams › Moveable Window Wiring Schematics › Passenger

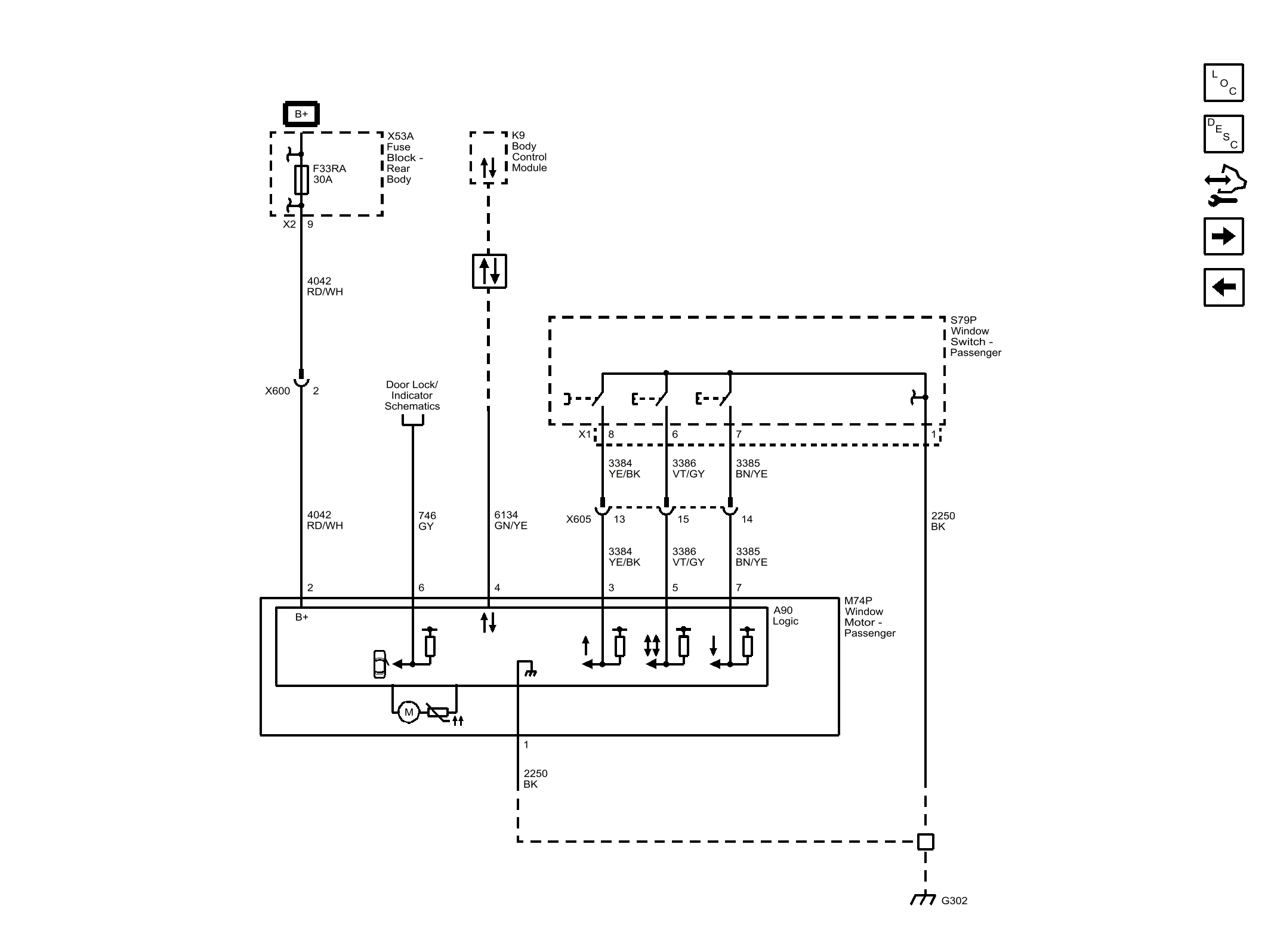

Moveable Window Wiring Schematics: Passenger

GM4597305
