Battery Distribution Engine Compartment Fuse Block Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Engine Wiring Harness Junction Block Replacement

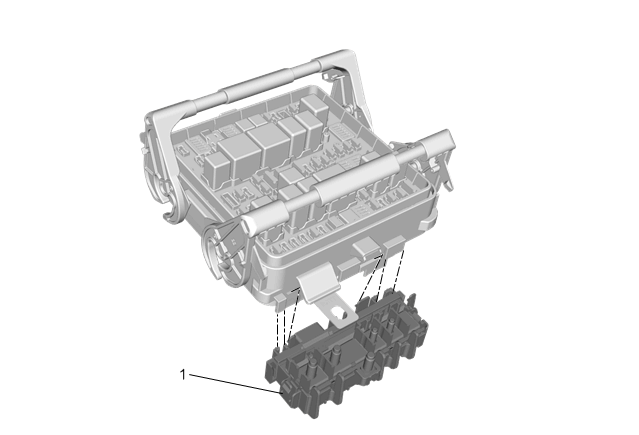

1	Battery Distribution Engine Compartment Fuse Block Procedure  Release the 2 tab retainers and slide the battery distribution engine compartment fuse block from the engine wiring fuse block.
