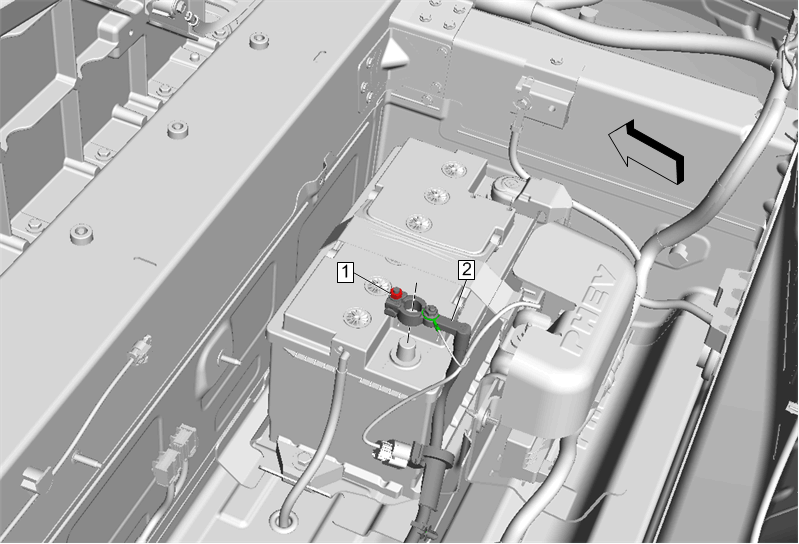

Battery Negative Cable Disconnection and Connection

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Rear Compartment Floor Stowage Compartment Tray Replacement (With HP9)
1	Battery Negative Post Clamp Nut WARNING: Refer to Battery Disconnect Warning . CAUTION: Refer to Fastener Caution . Tighten  4 N.m (35 lb in)
2	Battery Negative Cable
