Installation Procedure

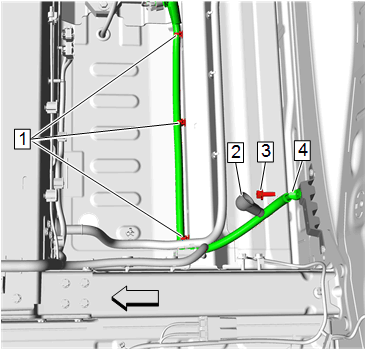

  1. GM5021979Courtesy of GENERAL MOTORS COMPANY

    Battery Negative Cable (4) - Install

    2. CAUTION:

    Refer to Fastener Caution

  2. Battery Negative Cable Ground Bolt (3) - Install and tighten 22 N.m (16 lb ft)
  3. Protective Boot (2) - Install
  4. Retainer (1) - Engage [3x]
  5. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection

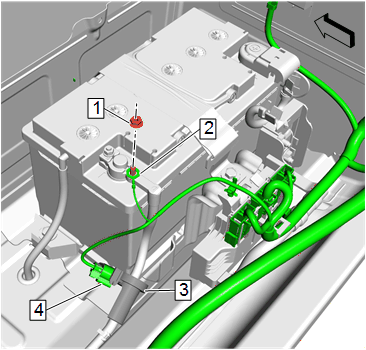

  6. GM5021977Courtesy of GENERAL MOTORS COMPANY

    Body Harness Terminal (2) - Install

  7. Battery Negative Cable Ground Nut (1) @ Battery Negative Post - Install and tighten 9 N.m (80 lb in)
  8. Electrical Connector (4) @ Battery Current Sensor (3) - Connect

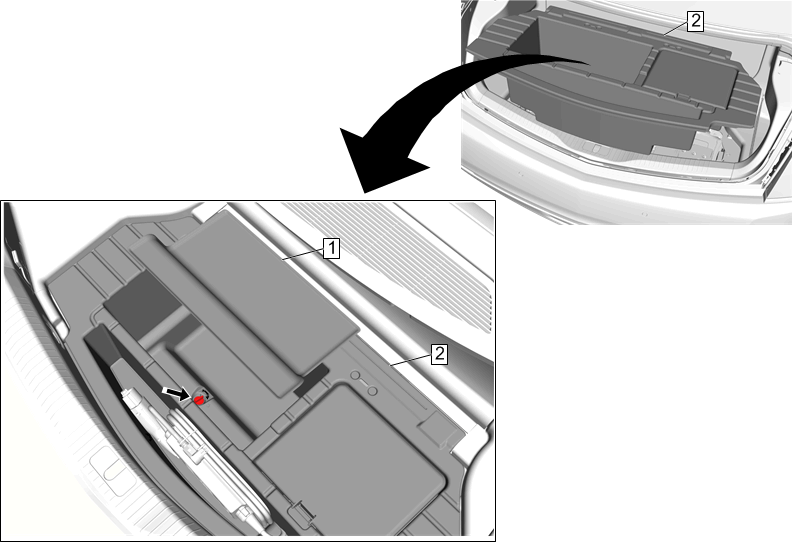

  9. GM4497776Courtesy of GENERAL MOTORS COMPANY

    Rear Compartment Floor Stowage Compartment Tray (2) - Install - Rear Compartment Floor Stowage Compartment Tray Replacement (With HP9)
