Installation Procedure

  1. GM4888560Courtesy of GENERAL MOTORS COMPANY

    If you are replacing the battery with a serviced NEW battery, detach the vent plug (1), that comes with the positive post cover.

  2. GM4888677Courtesy of GENERAL MOTORS COMPANY

    Install the vent plug (1), opposite side of the battery vent hose (2).

  3. GM4247271Courtesy of GENERAL MOTORS COMPANY

    Battery (1) - Install

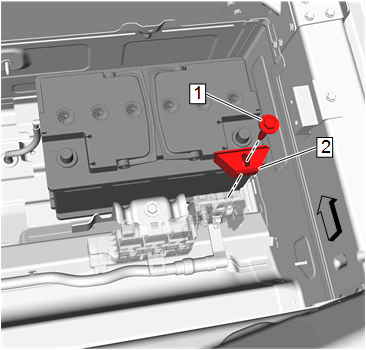

  4. GM5022171Courtesy of GENERAL MOTORS COMPANY

    Battery Hold Down Retainer (2) - Install

    5. CAUTION:

    Refer to Fastener Caution

  5. Battery Hold Down Bolt (1) - Install and tighten 22 N.m (16 lb ft)

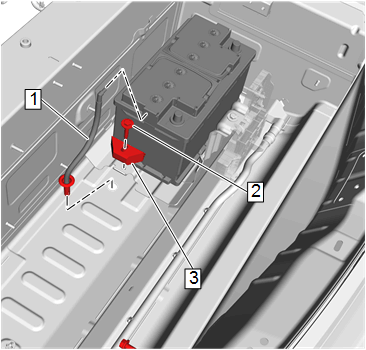

  6. GM4247269Courtesy of GENERAL MOTORS COMPANY

    Battery Vent Tube (1) - Engage

  7. Battery Hold Down Retainer (3) - Install
  8. Battery Hold Down Bolt (2) - Install and tighten 22 N.m (16 lb ft)

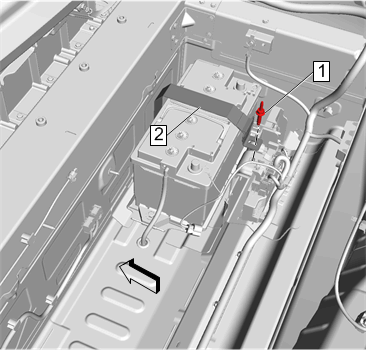

  9. GM4475467Courtesy of GENERAL MOTORS COMPANY

    Battery Hold Down Strap (2) - Install

  10. Battery Hold Down Strap Fastener (1) - Install and tighten 9 N.m (80 lb in)
  11. GM4475490Courtesy of GENERAL MOTORS COMPANY

    Battery Positive Cable (3) - Install

  12. Battery Positive Post Clamp Nut (1) - Tighten 6 N.m (53 lb in)
  13. Battery Positive Post Cover (2) - Install
  14. GM4475465Courtesy of GENERAL MOTORS COMPANY

    Battery Distribution Fuse Block Cover (3) - Install

  15. Battery Distribution Fuse Block Cover Retainer (1) - Engage [2x]
  16. Battery Distribution Fuse Block Cover Fastener (2) - Install and tighten 9 N.m (80 lb in)
  17. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection
