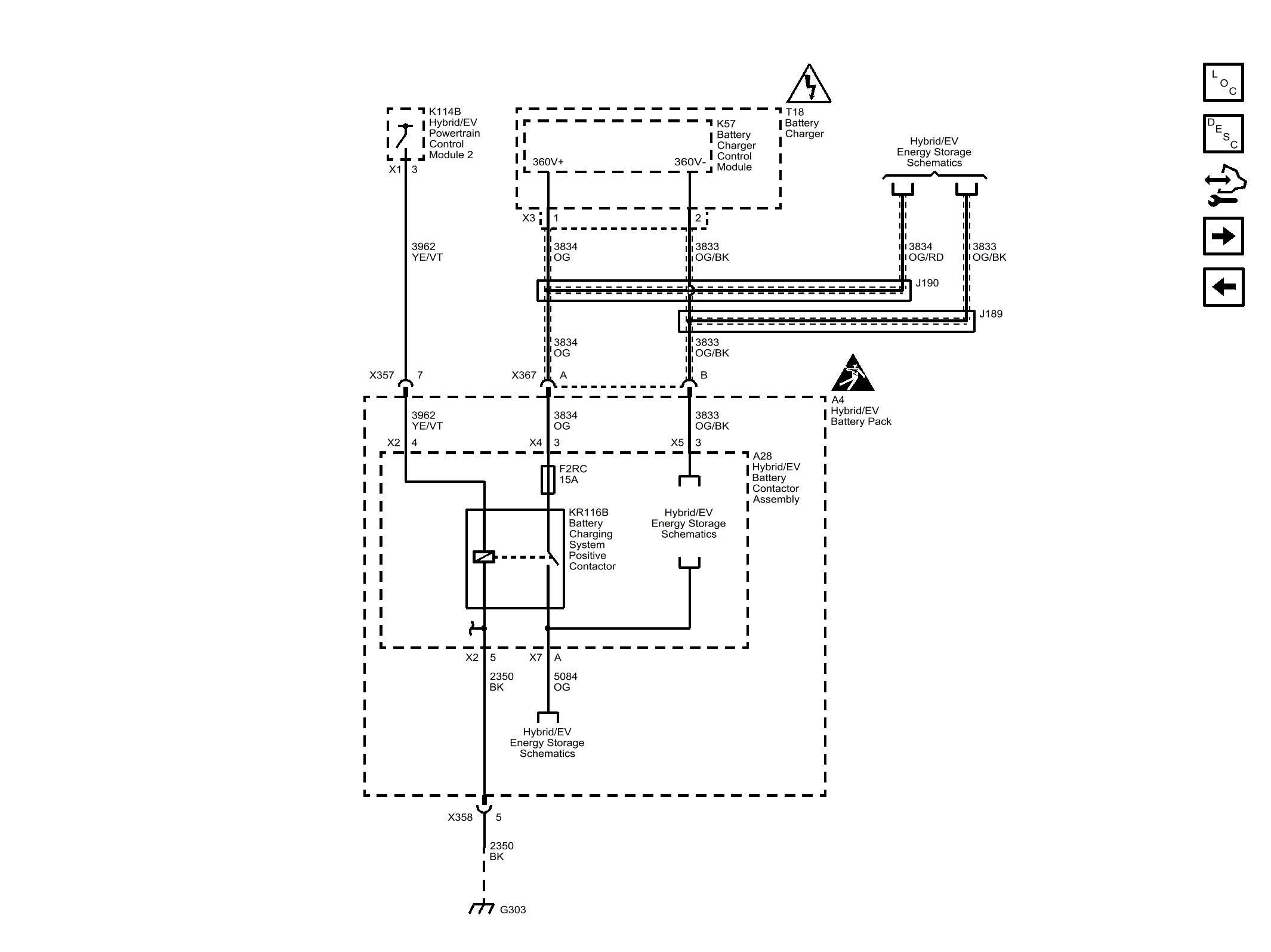

Home › Cadillac › 2018 › CT6 Plug-In › Repair and Diagnosis › Electrical › Charging Systems › Plug-In Charging › Schematic Wiring Diagrams › Plug-In Charging Wiring Schematics › Battery Charger Output
