Instrument Cluster Replacement

Courtesy of GENERAL MOTORS COMPANY

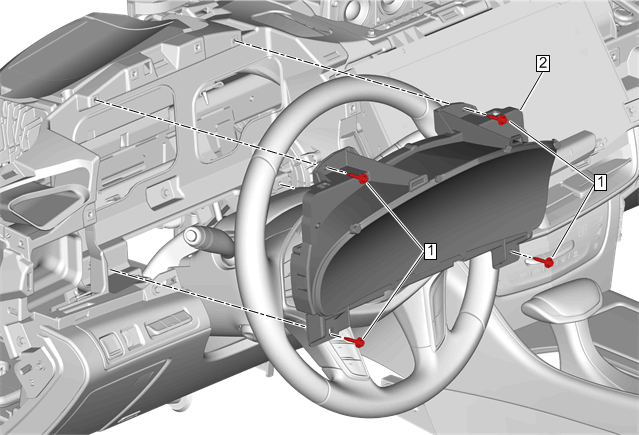

Callout	Component Name
Preliminary Procedure Instrument Panel Cluster Trim Plate Replacement
1	Instrument Cluster Bolt [4x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Instrument Cluster Procedure Disconnect the electrical connectors. Control Module References for programming and set up information, if required.

Callout

Component Name

Instrument Cluster Bolt [4x]

CAUTION:

Tighten
2.5 N.m (22 lb in)

Instrument Cluster

Procedure
