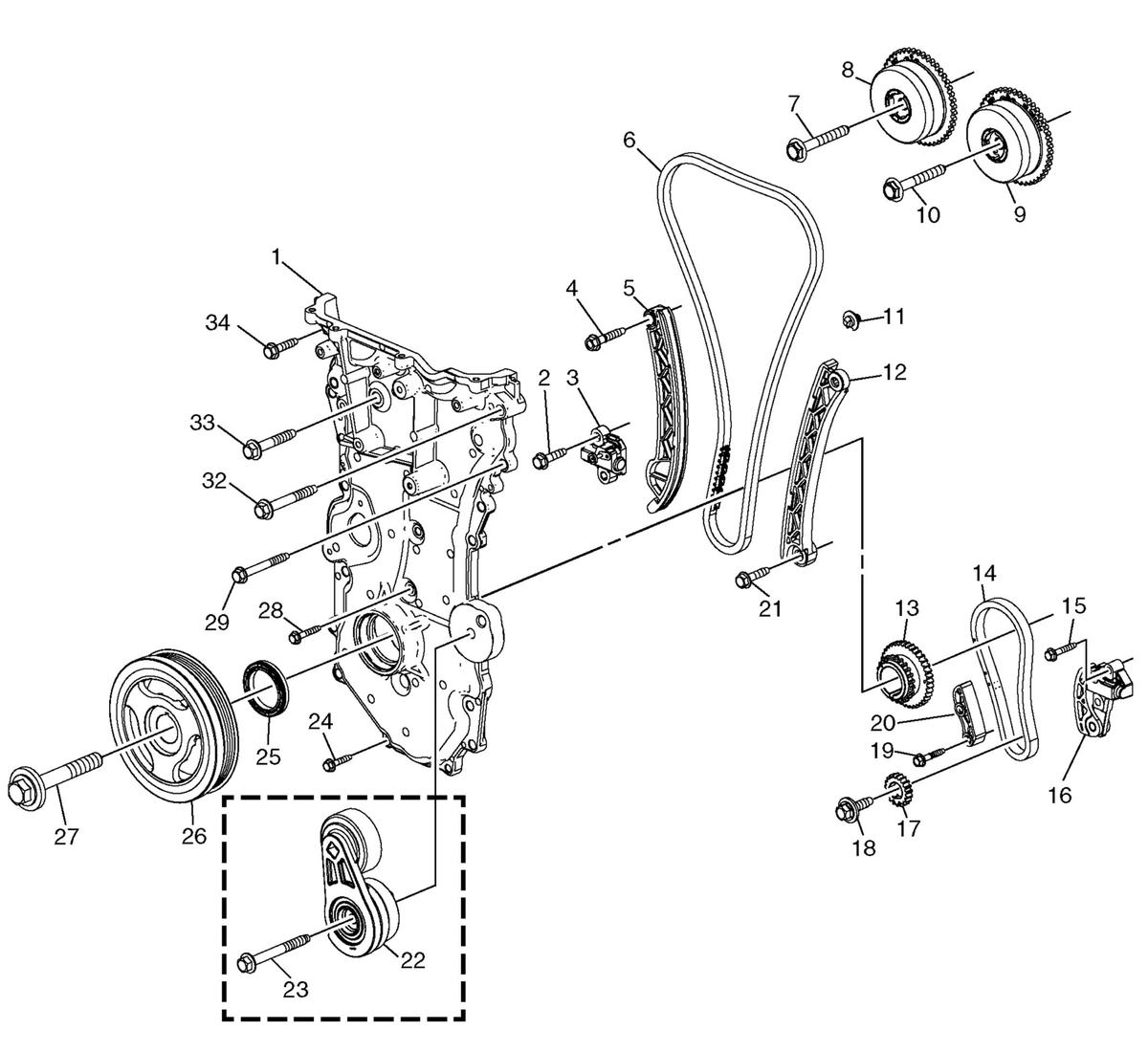

| 1 |
Engine Front Cover |
| 2 |
Timing Chain Tensioner Bolt |
| 3 |
Timing Chain Tensioner |
| 4 |
Timing Chain Tensioner Shoe Bolt |
| 5 |
Timing Chain Tensioner Pivot Arm |
| 6 |
Timing Chain |
| 7 |
Camshaft Position Actuator Bolt |
| 8 |
Camshaft Position Actuator |
| 9 |
Camshaft Position Actuator |
| 10 |
Camshaft Position Actuator Bolt |
| 11 |
Timing Chain Oil Nozzle |
| 12 |
Timing Chain Guide |
| 13 |
Crankshaft Sprocket |
| 14 |
Balance Chain |
| 15 |
Balancer Chain Tensioner Bolt |
| 16 |
Balancer Chain Tensioner |
| 17 |
Balancer Shaft Driven Sprocket |
| 18 |
Balance Shaft Sprocket Bolt |
| 19 |
Balance Chain Guide Bolt |
| 20 |
Balancer Chain Guide |
| 21 |
Timing Chain Guide Bolt |
| 22 |
Drive Belt Tensioner - Model Dependent |
| 23 |
Drive Belt Tensioner Bolt - Model Dependent |
| 24 |
Engine Front Cover Bolt |
| 25 |
Crankshaft Front Oil Seal |
| 26 |
Crankshaft Balancer |
| 27 |
Crankshaft Balancer Bolt |
| 28 |
Engine Front Cover Bolt |
| 29 |
Engine Front Cover Bolt |
| 32 |
Engine Front Cover Bolt |
| 33 |
Engine Front Cover Bolt |
| 34 |
Engine Front Cover Bolt |
