Engine Identification

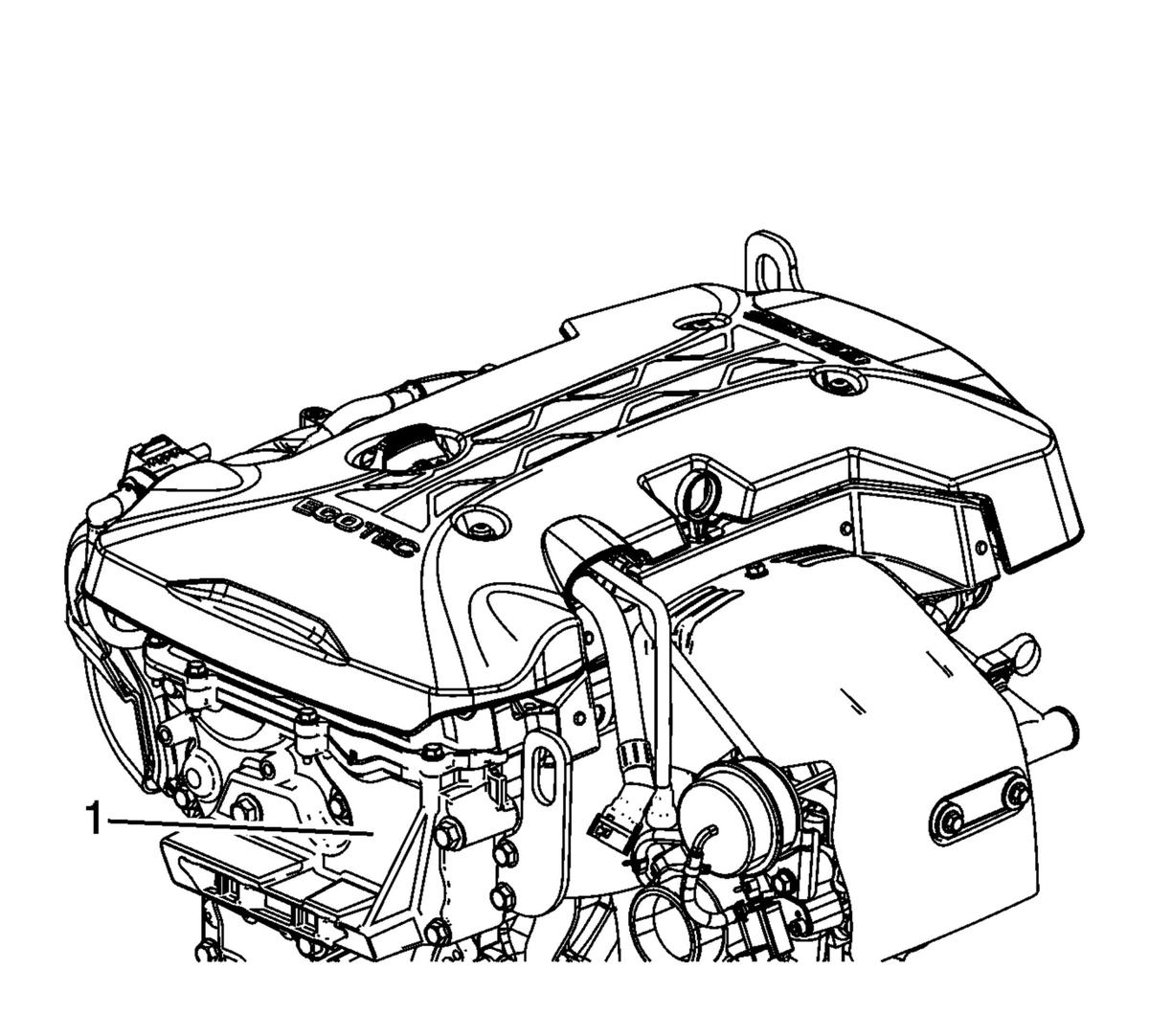

Identification can be made through the use of the Engine Traceability label (1) on the engine.
| Callout | Component Name |
|---|---|
| 1 | Broadcast Code |
| 2 | Machine Readable 2D Matrix |
| 3 | VPPS Code |
| 4 | Part Sequence Number |
| 5 | Reserved Use |
| 6 | Broadcast Code |
| 7 | Model Year |
| 8 | Julian Date |
| 9 | Build Year |
| 10 | Shift ID |
| 11 | Plant ID |
| 12 | GM Part Number |
| 13 | Plant DUNS Number |
| 14 | Sequence Number |
| 15 | RPO/Engine Family Code |
