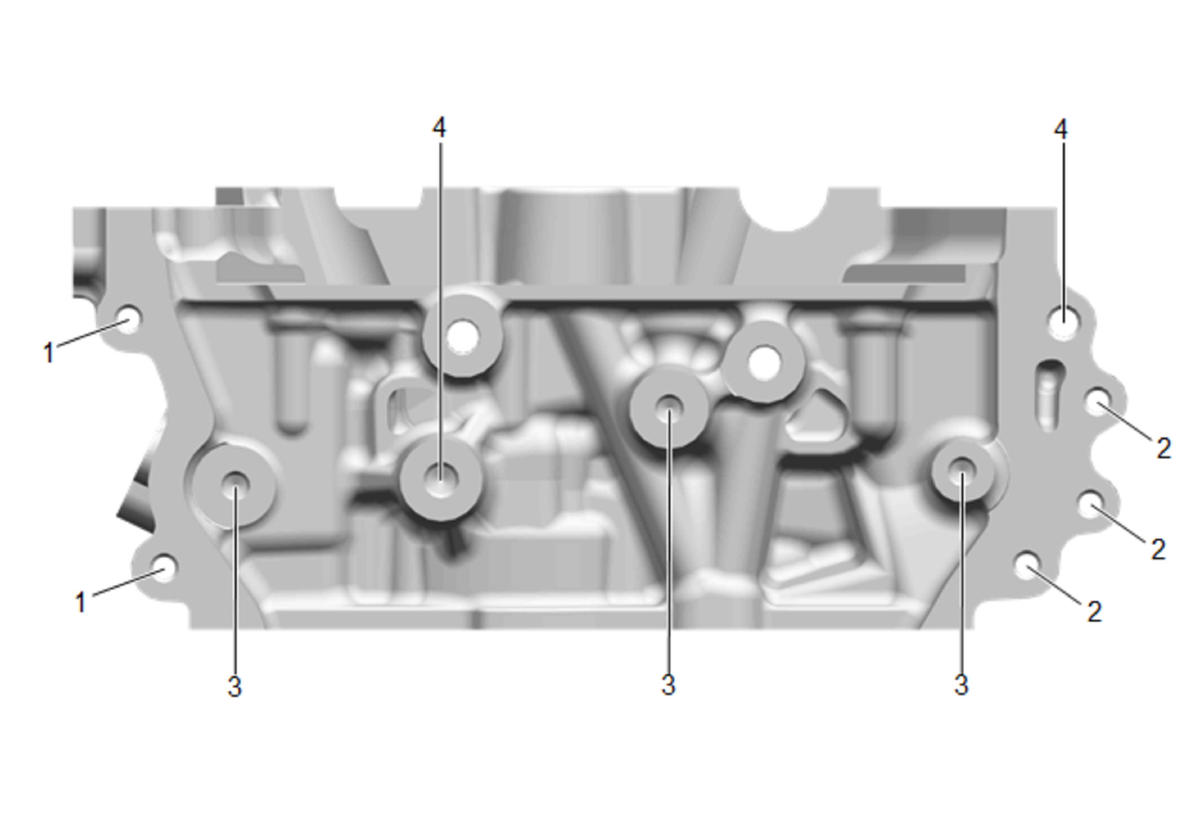

Cylinder Head - Front View
Cylinder Head - Front View
| Service Call Out | Thread Size | Insert | Drill | Counterbore Tool | Tap | Driver | Drill Depth (Maximum) | Tap Depth (Maximum) | ||
|---|---|---|---|---|---|---|---|---|---|---|
| EN 42385 | MM | (IN) | MM | (IN) | ||||||
| 1 | M8 x 1.25 | 18129 | 206 | 207 | 208 | 209 | 29.0 | 1.14 | 29.0 | 1.14 |
| 2 | M8 x 1.25 | 18127 | 206 | 207 | 208 | 209 | 29.0 | 1.14 | 29.0 | 1.14 |
| 3 | M8 x 1.25 | 181213 | 206 | 207 | 208 | 209 | 29.0 | 1.14 | 29.0 | 1.14 |
| 4 | M10 x 1.5 | 420 | 211 | 212 | 213 | 214 | 34.0 | 1.35 | 34.0 | 1.35 |
