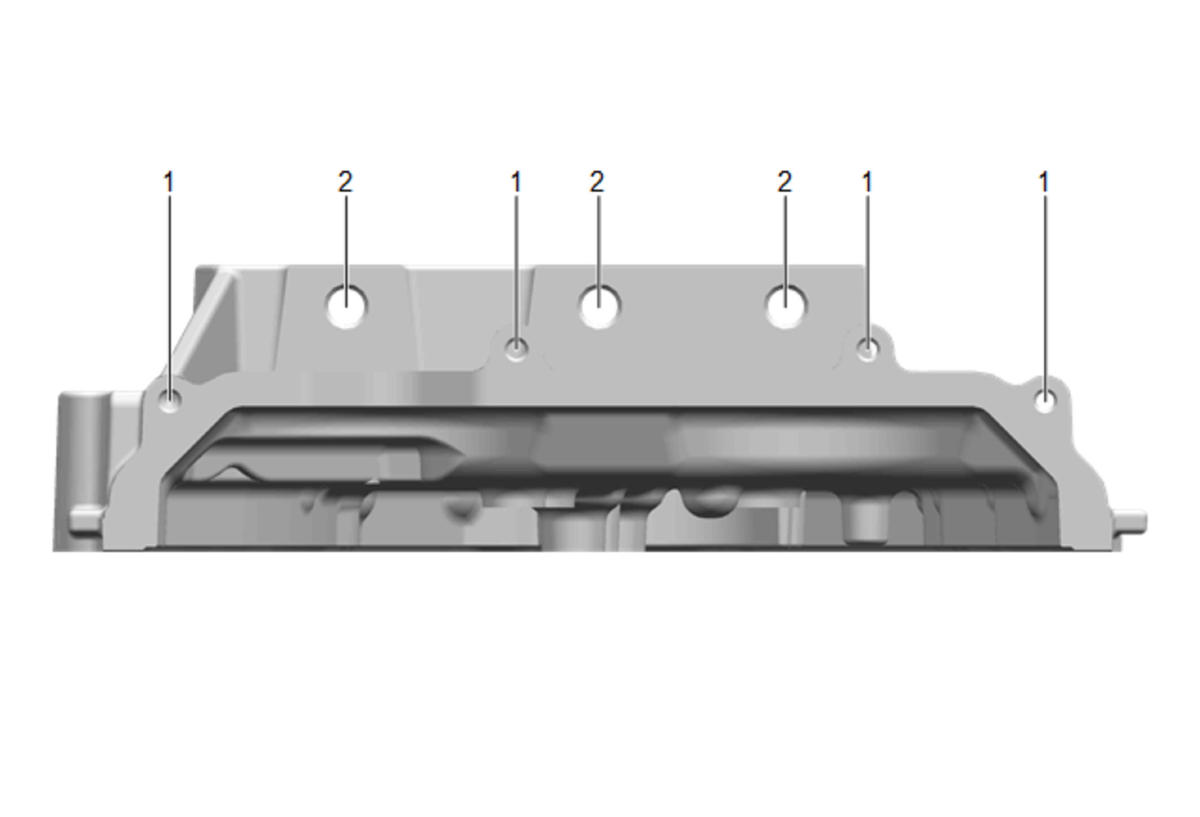

Engine Front Cover - Top View
 Courtesy of GENERAL MOTORS COMPANY
|
Engine Front Cover - Top View
| Service Call Out |
Thread Size |
Insert |
Drill |
Counterbore Tool |
Tap |
Driver |
Drill Depth (Maximum) |
Tap Depth (Maximum) |
| EN 42385 |
MM |
(IN) |
MM |
(IN) |
| 1 |
M5 x 0.8 |
3005 |
3001 |
3002 |
3003 |
3004 |
23.0 |
0.907 |
23.0 |
0.907 |
| 2 |
M6 x 1.0 |
205 |
201 |
202 |
203 |
204 |
23.0 |
0.907 |
23.0 |
0.907 |
