Rear Body Exhaust Heat Shield Replacement

Courtesy of GENERAL MOTORS COMPANY

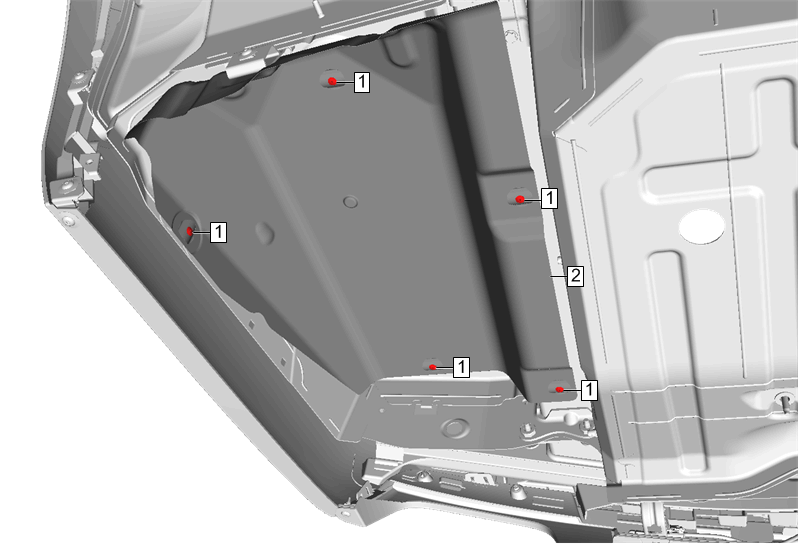

Callout	Component Name
Preliminary Procedure  Exhaust Muffler Replacement (LTG without HP9) Exhaust Muffler Replacement (LGW, LGX) Exhaust Muffler Replacement (LTG with HP9)
1	Rear Body Exhaust Heat Shield Rivet [5x] Procedure  Drill out the rivets.
2	Rear Body Exhaust Heat Shield
