Fuel Pump Power Control Module Replacement (HP9)

Courtesy of GENERAL MOTORS COMPANY

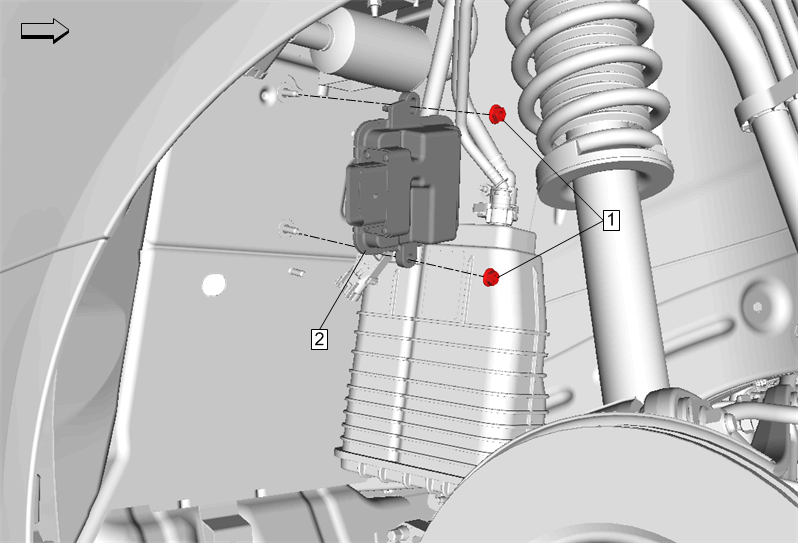

Callout	Component Name
Preliminary Procedure Rear Wheelhouse Liner Replacement
1	Fuel Pump Power Control Module Fastener [2x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
	Fuel Pump Power Control Module Procedure Disconnect the electrical connector. If replacing, reprogram the module. Control Module References

Callout

Component Name

Fuel Pump Power Control Module Fastener [2x]

CAUTION:

Tighten
9 N.m (80 lb in)

Fuel Pump Power Control Module

Procedure
