Installation Procedure

  1. GM4249566Courtesy of GENERAL MOTORS COMPANY

    Fuel Tank Filler Pipe (3) - Install

  2. Install harness retainer to filler pipe.
  3. Tie Strap (2) - Install NEW
    4. CAUTION:

    Refer to Fastener Caution .

  4. Fuel Tank Filler Pipe Bolt (1) - Install 9 N.m (80 lb in)
  5. GM4231359Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Torque-to-Yield Fastener Caution .

    Rear Shock Absorber Bolt (1) - Install a NEW bolt. - Shock Absorber and Spring Removal and Installation

  6. GM4250030Courtesy of GENERAL MOTORS COMPANY

    Evaporative Emission Canister Hose (1) - Connect - Plastic Collar Quick Connect Fitting Service

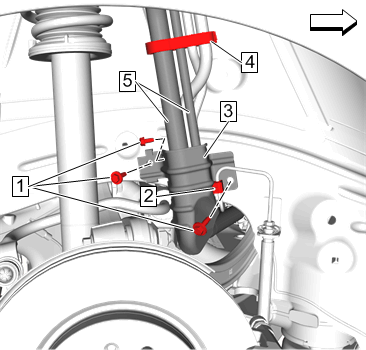

  7. GM5022639Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Install NEW tie strap.

    Fuel Tank Filler Pipe (5) @ Tie strap (4) - Install

  8. Fuel Tank Filler Pipe Shield (3) - Install
  9. Brake Line Retainer (2) - Install
  10. Fuel Tank Filler Pipe Shield Bolt (1) - Install [3x] 9 N.m (80 lb in)
  11. GM4249501Courtesy of GENERAL MOTORS COMPANY

    Fuel Tank Filler Pipe (1) @ Retainer (2) - Install

  12. Rear Wheelhouse Liner Replacement - Install
  13. GM4249432Courtesy of GENERAL MOTORS COMPANY

    Fuel Tank Filler Pipe (4) - Install

  14. Fuel Tank Filler Hose (3) - Install
  15. Fuel Tank Filler Hose Clamp (2) - Install 4 N.m (35 lb in)
  16. Fuel Tank Filler Evaporative Emission Valve Hose (1) - Connect - Plastic Collar Quick Connect Fitting Service
  17. Fuel Tank Filler Pipe Housing - Install - Fuel Tank Filler Pipe Housing Replacement
  18. Fill the fuel tank.
