Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

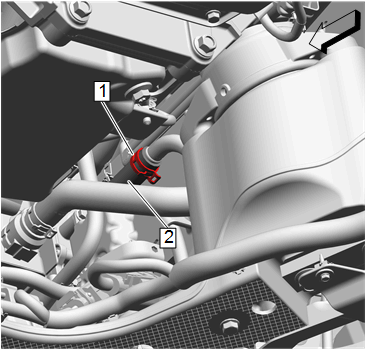

Drive Motor Control Module Cooling Inlet Hose (2)@Drive Motor Power Inverter Module Coolant Outlet Pipe - Install
Hose Clamp (1) - Engage - Hose Clamp Replacement Guidelines - Spring Type
Courtesy of GENERAL MOTORS COMPANY

Drive Motor Control Module Cooling Inlet Hose (2)@Accessory DC Power Control Module - Remove
Hose Clamp (1) - Engage - Hose Clamp Replacement Guidelines - Spring Type
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Generator Control Module Coolant Radiator Bolt (1)@Accessory DC Power Control Module - Install and tighten9 N.m (80 lb in)
Courtesy of GENERAL MOTORS COMPANY

Drivetrain and Front Suspension Cradle Plate (3) - Install - Drivetrain and Front Suspension Cradle Plate Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Wheelhouse Liner-Right Side (2) - Install - Front Wheelhouse Liner Replacement
Fill the power electronics and auxiliary radiator cooling system. Power Electronics and Auxiliary Radiator Drain and Fill (LTG HP9)
Enable the high voltage system. High Voltage Enabling
Start the engine and check for coolant leaks.
