Engine Compartment Components - Bottom (HP9)

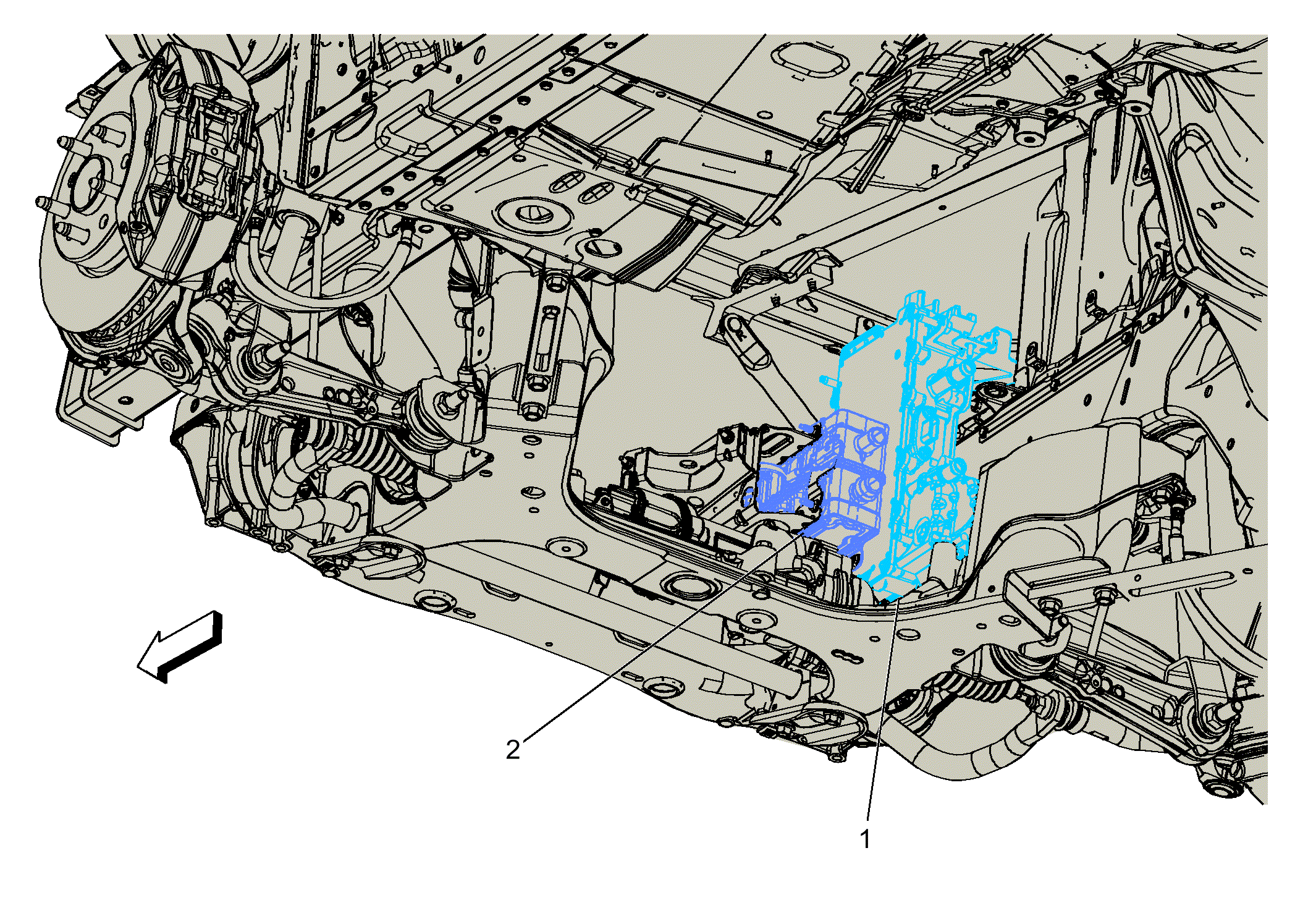

GM4316010Courtesy of GENERAL MOTORS COMPANY
Engine Compartment Components - Bottom (HP9)

Items
1. K1 14V Power Module (HP9)
2. K10 Coolant Heater Control Module (HP9)
