Ignition Lock Key Transmitter Antenna Replacement - Floor Console

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Floor Console Rear Trim Panel Replacement

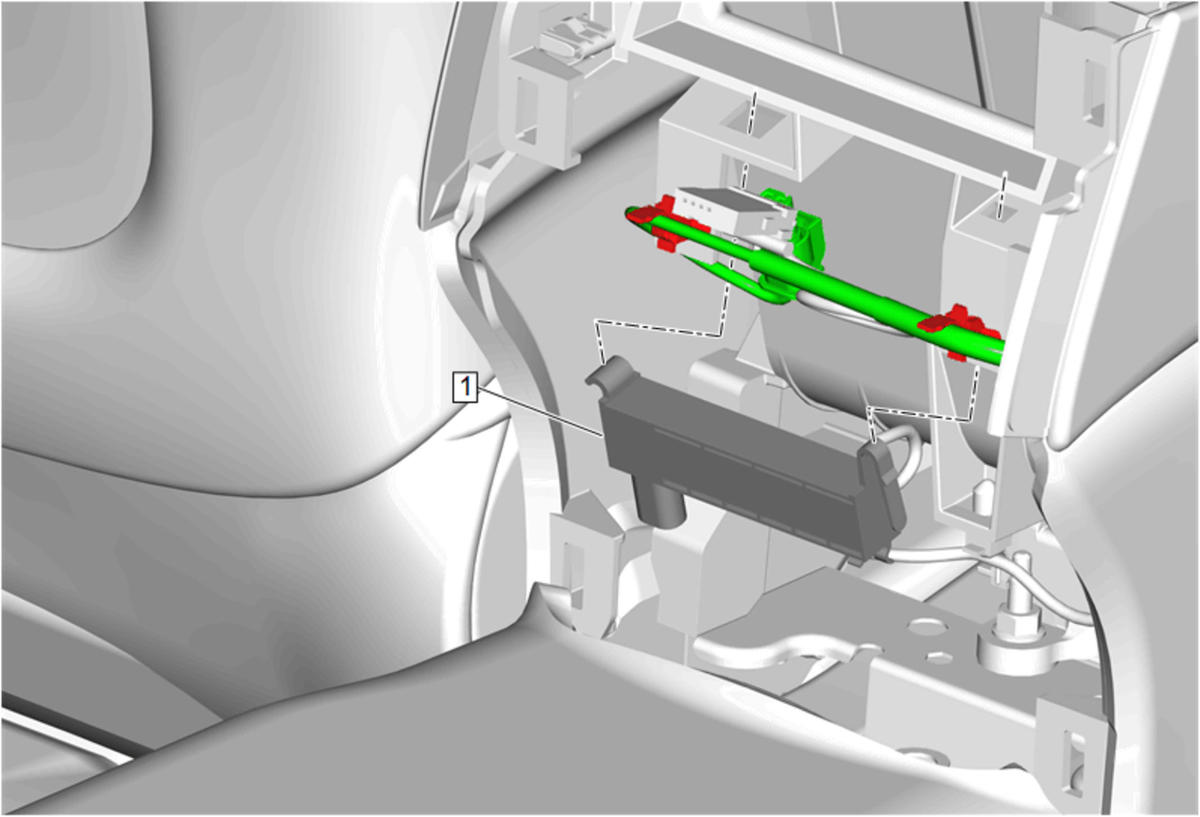

1	Ignition Lock Key Transmitter Antenna Procedure Reposition the wiring harness. Disconnect the electrical connector. Release the retaining tab.

Callout

Component Name

Ignition Lock Key Transmitter Antenna

Procedure
