Ignition Lock Key Transmitter Antenna Replacement - Instrument Panel

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Instrument Panel Lower Center Trim Panel Replacement (Right Side)Instrument Panel Lower Center Trim Panel Replacement (Left Side)

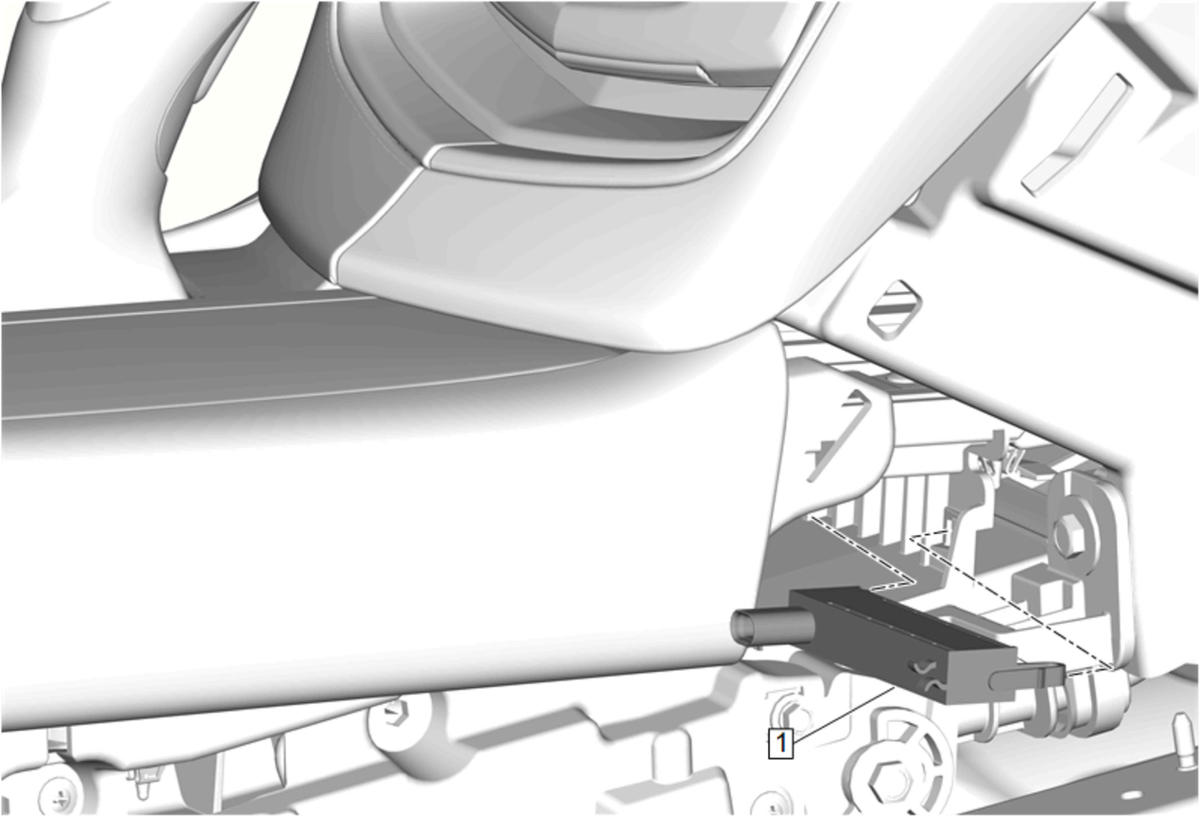

1	Ignition Lock Key Transmitter Antenna Procedure Reposition the front floor panel carpet as necessary. Release the retaining tab. Disconnect the electrical connector.

Callout

Component Name

Ignition Lock Key Transmitter Antenna

Procedure
